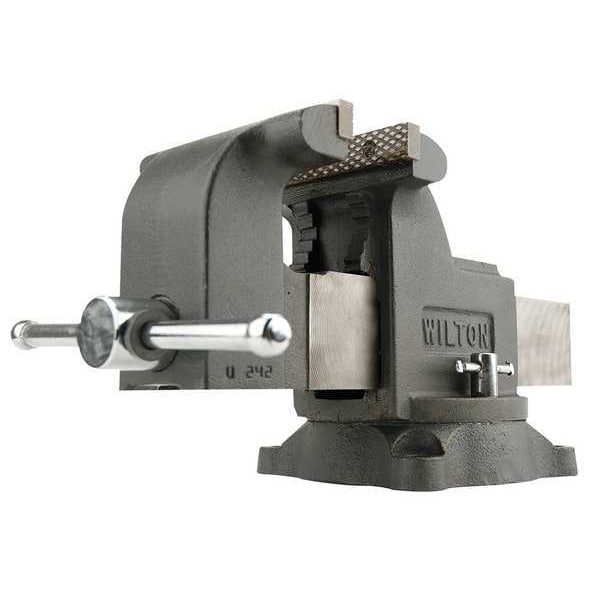

Wilton 8" Standard Duty Combination Vise with Swivel Base WS8 - main

8" Standard Duty Combination Vise with Swivel Base

  • Mfr # WS8

  • Zoro # G5293434

product price:  $466.99
/ea
Free Shipping & Returns

Key Features

Base Type
Swivel
Jaw Width
8"
Duty Rating
Standard Duty
Overall Height
11 7/16 in
Overall Length
22 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WS8
Zoro #
G5293434
UPC #
019907633044
Country of Origin
China

Dimensions

Jaw Width
8"
Overall Height
11 7/16 in
Overall Length
22 1/4 in
Throat Depth
4 in
Mounting Hole Dia.
35/64 in
Overall Width
9 5/16 in
Throat Depth Range
3 in to 5 in
Jaw Width - Vises
8 in
Throat Depth - Vises
4 in
Jaw Width Range
Greater than 7 in
Mounting Hole Diameter
1/2 in
Pipe Diameter - Minimum
3/4 in
Jaw Face Width
8 in
Pipe Diameter - Maximum
3 in

Details

Item
Combination Vise
Base Type
Swivel
Duty Rating
Standard Duty
Features
Designed for General Duty Applications, Large Anvil Work Surface, Rubber Pinch Point Safety Guards
Reversible
No
Max. Opening - Vises
8 in
High Visibility
No
Jaw Type
Replaceable
Body Casting Tensile Strength
30,000 psi
Pipe Jaw Included
Yes
Number of Mounting Points
4
Material
Ductile Iron
Duty Rating - Vises
Standard Duty
Body Casting
30,000 psi
Pipe Capacity
3/4" to 3"
Number of Lock Down Bolts
2
Jaw Face
Serrated
Product Grouping - Vises
Bench Vises
Quick-Acting
No
Max. Opening Range
Greater than 7 in
Deep Throat
No
Jaw Face - Vises
Serrated
Material -Vises
Ductile Iron
Pipe Capacity - Vises
3/4 in to 3 in
Swivel Angle
360 Degrees
Base Type - Vises
Swivel
Max. Opening
8"
Item - Vises
Combination Vise
Swivel Angle - Vises
360 Degrees
Jaw Material
Iron
High-Visibility
No
Number of Mounting Holes
4
Body Material
Cast Iron
Jaw Attachment Type
Replaceable
Material Process
Cast
Spindle Type
Enclosed
Jaw Pad Material
Hardened Steel
Includes Rotating Head
No
Base Swivel Angle
360 Degrees
Base Material
Iron
Base Tensile Strength
30,000 psi
Jaw Face Type
Serrated
Jaw Opening - Maximum
8 in
Body Tensile Strength
30,000 psi
Vise Type
Combination Vise
Includes Pipe Jaw
Yes

Description

The WILTON - WS8 Combination Vise is an industrial-grade tool, perfect for securely holding objects during various tasks. Crafted from robust and durable Ductile Iron, this vise is designed for general duty applications. Its compact size of 9 5/16 inches in width and 11 7/16 inches in height allows it to fit into most workspaces without occupying excessive space.
Key features include:

  • Large Anvil Work Surface: This feature enables users to handle larger or multiple items simultaneously.

  • Rubber Pinch Point Safety Guards: These guards enhance user safety by preventing accidental contact with pinch points on the tool.

  • Reversible Feature: The vise can be adjusted to hold objects from different angles, offering flexibility in usage.

  • Pipe Jaw Included: With this feature, the vise can secure both flat and cylindrical objects effectively.

  • Swivel Base: Allows you to position the vise wherever needed.
    This standard-duty combination vise has a steel jaw and an overall length of 22 1/4 inches. It also boasts a pipe capacity ranging from 3/4" to 3", making it suitable for handling most types of pipes.
