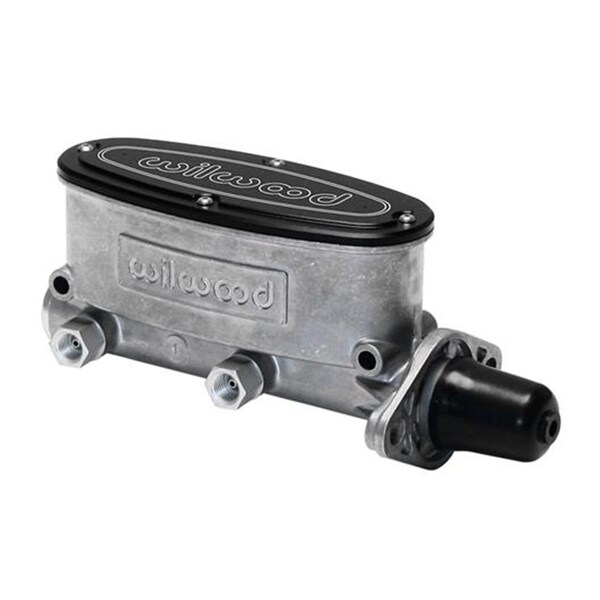

2608555 1 In. Tandem Brake Master Cylinder, Silver

Wilwood's tandem aluminum master cylinder and 3 finishes, plain, ball burnished and black e-coat. 7/8 in. Bore master cylinders are designed primarily for manual applications and include a pushrod. The 1 in. Bore can be used in manual and power assisted applications and does not come with a pushrod. The 1.125 in. Bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems. Features They're designed for mount flanges from 3.22 in. To 3.40 in. Offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10 in. With a volume ratio of 2 - 1 between the primary and secondary chambers. Machined from high-pressure die castings. Bore diameter - 1 in. Port size - 1/2 in.-20 outlet. Finish - Natural. Color - Silver. Material - Aluminum. Includes reservoir - Yes.
