Zoro Homepage

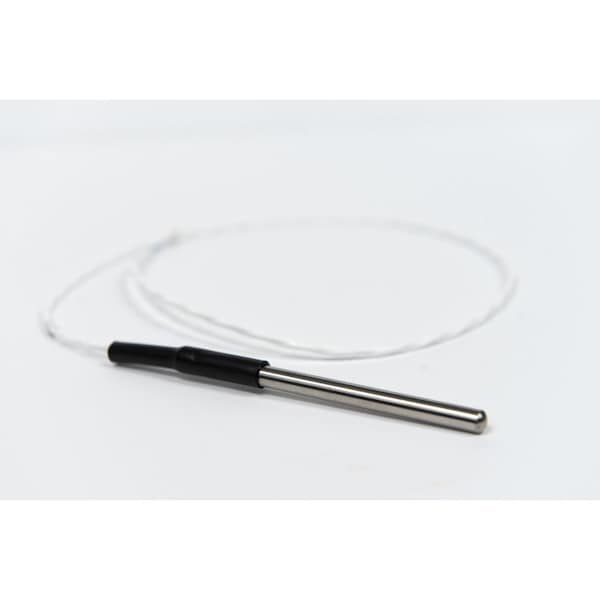

Temperature Probe, -100 to 32 deg. C

  • Mfr # TEMP-UL-S

  • Zoro # G8922882


product price: $97.69
/ea
Free Shipping & Returns

Key Features

Sensor Type
Thermistor
Temp. Range (F)
-148 Degrees to 32 Degrees
Temp. Range (C)
-100 Degrees to 32 Degrees
Probe Length
3.5 in
Primary Measuring Element
Thermistor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TEMP-UL-S
Zoro #
G8922882
UPC #
082075001113
Country of Origin
China

Dimensions

Probe Length
3.5 in
Probe Wire Length
1 ft 9 in
Wire Length
23"
Probe Dia.
1/4 in
Manufacturers Warranty Length
1 yr
Cable Length
23 in
Probe Size
1/4 in x 3 1/2 in
Probe Diameter
0.25 in
Manufacturer Warranty Length
1 yr
Diameter
1/4 in
Cord Length
23 in
Length
3.65 in

Details

Item
Temperature Probe
Sensor Type
Thermistor
Temp. Range (F)
-148 Degrees to 32 Degrees
Temp. Range (C)
-100 Degrees to 32 Degrees
Primary Measuring Element
Thermistor
Probe Temp. Measuring Element
Thermistor
Probe Connector
Terminal Block
Probe Connection Type
Terminal Block
Probe Contact Material
Stainless Steel
Accuracy
+/-2 Degrees F/ +/-1 Degrees C
Use
Air or Surface
Probe Material
Stainless Steel
Includes
Terminal Block
Temperature Measuring Element
Thermistor
For Use With
Mfr. No. EA800ip
Head Material
Stainless Steel
For Air
Yes
Probe Sheath Material
304 Stainless Steel, 316 Stainless Steel
Maximum Temperature C
0 Degrees C
For Solids
No
Cable Material
TPE (Thermoplastic Elastomer) Jacket Insulation, Polypropylene Lead Insulation
Resistance
300 ohm
Connector Type
Terminal Block
Process Mounting
Connection Block
Temperature Range
-148 Degrees to 32 Degrees F/-100 Degrees to 0 Degrees C
Includes Signal Converter
No
For Application
Air, Surface
Probe Bend
Straight
For Surfaces
Yes
For Liquids and Gels
Yes
For Gases
Yes
Thermistor Type
2-Wire
Minimum Temperature F
-148 Degrees F
Fitting Type
Terminal Block
Minimum Temperature C
-100 Degrees C
Maximum Temperature F
32 Degrees F
Minimum Temperature °C
-100 Degrees C
Maximum Temperature °C
0 Degrees C
Minimum Temperature °F
-148 Degrees F
Maximum Temperature °F
32 Degrees F
Minimum Temperature °C
-100 Degrees C
Minimum Temperature °F
-148 Degrees F
Maximum Temperature °C
0 Degrees C
Maximum Temperature °F
32 Degrees F

Description

The WinlandTM Ultra-Low Temperature Range Sensor ("TEMP-UL-S") or ("White Sensor") is a wired stainless-steel thermistor sensor accessory for the EnviroAlert® and EnviroAlert Professional® devices to monitor the temperature range of -148 to +32 °F (-100 to +0 °C) as a part of the Winland Critical-Environment Monitoring Solution.


  • • Monitors the temperature range of -148 to +32 °F (-100 to 0 °C)
  • • Use with EA800-ip, EA-WMFS, EAPro-GTWY or EAPro-WMFT
  • • Temperature range with EA-WMFS is -112 to +32 °F (-80 to +0 °C)
  • • Sturdy stainless-steel thermistor sensor
  • • Maximum sensor cable run of 1,000' (304.8m) [18-22 AWG twisted pair]
