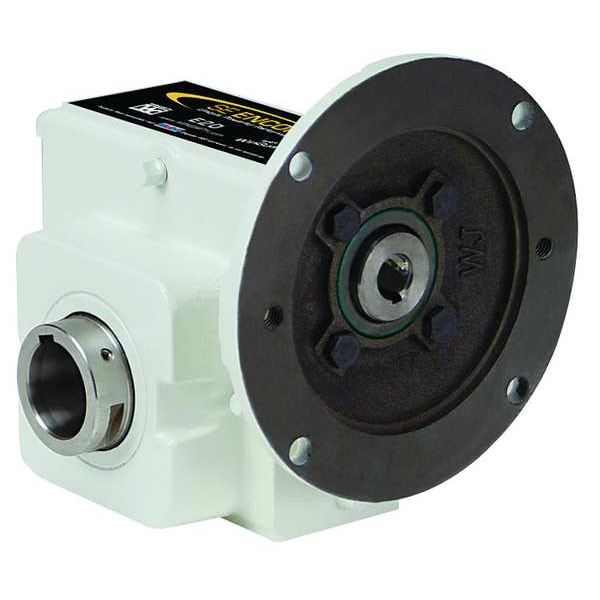

Speed Reducer, C-Face , 56C/140TC, 20:1

WINSMITH| Zoro #: G0394475| Mfr #: E30MWSS, 20:1, 56C/140TC

$1496.00 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Nominal Ratio: 20:1Dimension F: 2.75"Dimension A: 3.500"
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G0394475 Mfr #: E30MWSS, 20:1, 56C/140TC
Nominal Ratio: 20:1Dimension F: 2.75"
Dimension A: 3.500"Dimension L: 4.63"
Reducer Model No.: E30MWSSSolid/Hollow Output Shaft: Hollow
Frame: 56C/140TCBore Dia.: 1-15/16"
Dimension C: 3.000"Worm Center Distance: 3.00"
Dimension H: 1/2-13Dimension M: 5.560"
Output Torque @ 2 HP: 1339 in.-lb.Shaft Orientation: Right Angle
Output Torque @ 1.5 HP: 1004 in.-lb.Nominal Output RPM: 86
Output Shaft Dia.: 1-15/16"Max. Input HP: 3
Number of Stages: 1Overhung Load: 1750 lb.
Mounting: UniversalRotation: Reversible
Output Torque @ 3 HP: 2009 in.-lb.Speed Reducer Type: C-Face
Item: Speed ReducerDimension B: 6.620"
Dimension D: 6.500"Duty: Washdown
Max. Output Torque: 2009 in.-lb.Input RPM: 1725
Finish: Epoxy Coating SystemLubrication: Mobil Glygoyle(R) 460
Dimension G: 0.75"Output Shaft Height: 3-1/2"
Country of Origin (subject to change): United States

Description

Speed Reducer, C-Face, Right Angle Shaft Orientation, Washdown Duty, 1725 Input RPM, 86 Nominal Output RPM, Worm Center Distance 3.00 In., Bore Dia. 1-15/16 In., 56C/140TC Frame, Overhung Load 1750 lb., 20:1 Nominal Ratio, Max. Input HP 3, Max. Output Torque 2009 in.-lb., Number of Stages 1, Reversible Rotation, Universal Mounting, Output Shaft Dia. 1-15/16 In., Output Shaft Height 3-1/2 In.
