Winsmith

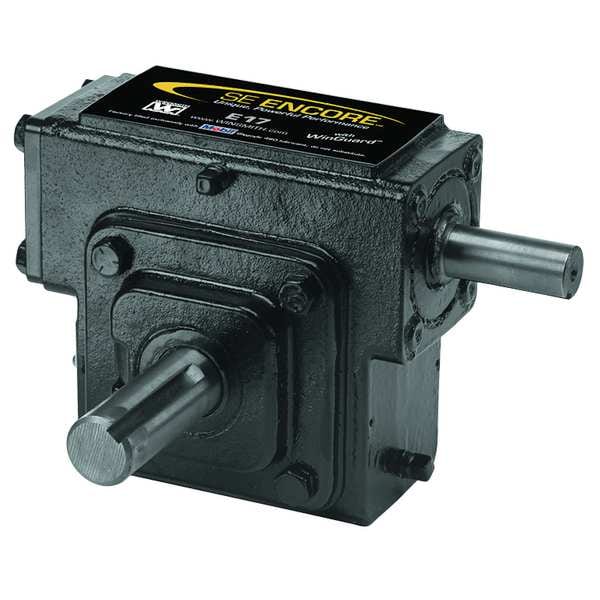

Speed Reducer, Indirect Drive, 10:1

product price: $530.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Nominal Ratio 10:1
  • Input RPM 1,725 RPM
  • Nominal Output RPM 172 RPM
  • Standards NSF/ASTM B-117
  • Solid/Hollow Output Shaft Solid
See all product information

Product Information

Dimensions

Dimension W 0.750 in
Dimension L 2.83 in
Dimension V 1.63 in
Dimension F 1.56 in
Dimension U 5/8 in
Dimension A 2 in
Dimension C 1.333 in
Output Shaft Dia. 3/4 in
Output Shaft Height 1 3/4 in
Dimension D 3.08 in
Dimension M 4.12 in
Dimension G 0.56 in
Dimension B 3.88 in
Dimension H 5/16-18
Output Shaft Length 1 3/4 in
Output Shaft Diameter 3/4 in

Details

Item Speed Reducer
Nominal Ratio 10:1
Input RPM 1,725 RPM
Nominal Output RPM 172 RPM
Standards NSF/ASTM B-117
Solid/Hollow Output Shaft Solid
Lubrication Mobil Glygoyle(R) 460
Max. Output Torque 248 in-lb
Rotation CW/CCW
Number of Stages 1
Max. Input HP 0.75 hp
Overhung Load 290 lb
Output Torque @ 1/4 HP 83 in-lb
Duty Washdown
Output Torque @ 1/3 HP 109 in-lb
Single/Double Output/Universal Double Output
Reducer Model No. E13XWNS
Shaft Orientation Right Angle
Frame Solid Input Shaft
Output Torque @ 1/2 HP 165 in-lb
Housing Material Cast Iron
Speed Reducer Type Indirect Drive
Finish Epoxy Coating System
Worm Center Distance 1.33 in
Output Torque @ 3/4 HP 248 in-lb
Gear Type Worm
Mounting Universal
Gear Ratio 10:1
Overhung Load Capacity 290 ft-lb
Motor Frame Designation Solid Input Shaft
Maximum Input Horsepower 0.75 hp
Mounting Orientation Any Angle
Maximum Output Torque 248 in-lb
Seal Material Fluroelastomer
Maximum Input Speed 1,725 RPM
Base to Center 1.75 in
Output Shaft Type Round
Maximum Output Speed 172 RPM
Housing Material Finish Epoxy Coating System
Input Connection Type Indirect Drive

Description

Speed Reducer, Input Connection Type Indirect Drive, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 172 RPM, Motor Frame Designation Solid Input Shaft, Worm Center Distance 1.33 in, Base to Center 1.75 in, Gear Ratio 10:1, Rotation CW/CCW, Maximum Input Horsepower 0.75 hp, Maximum Output Torque 248 in-lb, Overhung Load Capacity 290 ft-lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Housing Material Finish Epoxy Coating System
