  5. Commercial Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material

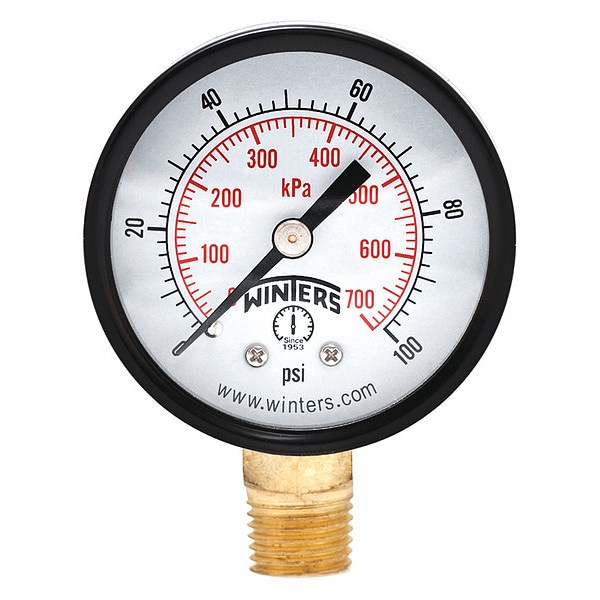

Winters Commercial Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material PEM202 - main

Commercial Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material

  • Mfr # PEM202

  • Zoro # G1615264

product price:  $7.15
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM202
Zoro #
G1615264
UPC #
628311200454
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Manufacturer Warranty Length
5 yr
Case Depth
1.161 in
Case Diameter
2.19 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM
Lens Material
Acrylic
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
10/50
Gauge Application
General-Purpose Case
Gauge Secondary Range Values
0 to 690
Case Material
Steel
Case Color
Black
Socket Material
Brass
Smallest Graduation
2 psi/10 kPa
Calibration Certificate Included
No
For Use With
Media Compatible with Bronze
Gauge Primary Range Numbered Graduations
20/100
Standards
ANSI/ASME, CRN
Connection Type
MNPT
Compatible Process Media
Non-Clogging, Non-Corroding
Accuracy Scale
Mid-Scale
Pressure Range Type
Pressure
Gauge Case Liquid
None
Removable Bezel
No
Cleaned for Oxygen Service
No
Pressure Gauge Type
Commercial Pressure Gauge
Sensor Type
Bourdon Tube
Dry Dampening Feature
None
Secondary Scale Units
kPa
Process Connection Gender
Male
Includes Mounting Hardware
No
Case Construction
Welded Joint
Secondary Pressure Range
0 to 690
Case Finish
Painted
Pointer Material
Aluminum
Non-Sparking
No
Pointer Color
Black
Includes Vent Plug
No
Vibration Resistance
None
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Includes Calibration Certificate
No
Accuracy Grade
ASME B40.100 Grade B
Freeze Resistant Movement
No
Movement Material
Brass
Dial Color
White
Over-Pressure Limit
25% of Full Scale
Scale Type
Dual
Process Temperature Range
-40 Degrees to 150 Degrees F
Sensor Material
Phosphor Bronze
Bezel Material
Steel
Field Fillable
No
Dial Face Material
Aluminum
Operating Temperature Range
-40 Degrees to 150 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
100 psi
IP Rating
IP52
NEMA Enclosure Rating
5
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
690 kPa
Process Media Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
None
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge, Liquid-Filled Case No
