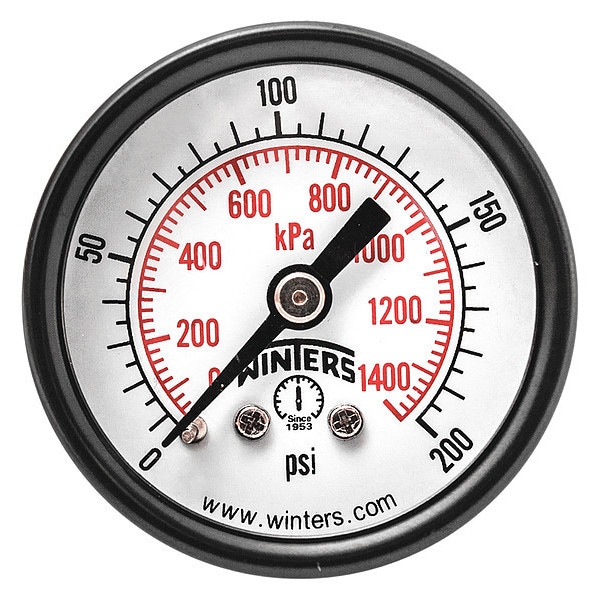

Winters Commercial Pressure Gauge, 0 to 200 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location PEM1422 - main

Commercial Pressure Gauge, 0 to 200 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # PEM1422

  • Zoro # G1604493

product price:  $6.15
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PEM1422
Zoro #
G1604493
UPC #
628311200072
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Manufacturer Warranty Length
5 yr
Case Depth
0.975 in
Nominal Dial Size
1 1/2 in
Case Diameter
1.66 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM
Lens Material
Acrylic
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Socket Material
Brass
Gauge Application
General-Purpose Case
Gauge Primary Range Smallest Graduation
10/100
Gauge Secondary Range Values
0 to 1380
Case Color
Black
Standards
ANSI/ASME, CRN
Case Material
Steel
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
50/200
For Use With
Media Compatible with Bronze
Smallest Graduation
2 psi/20 kPa
Connection Type
MNPT
Accuracy Scale
Mid-Scale
Sensor Material
Phosphor Bronze
Secondary Scale Units
kPa
Pressure Gauge Type
Commercial Pressure Gauge
Non-Sparking
No
Process Connection Gender
Male
Gauge Case Liquid
None
Over-Pressure Limit
25% of Full Scale
Compatible Process Media
Non-Clogging, Non-Corroding
Sensor Type
Bourdon Tube
Pointer Material
Aluminum
Accuracy Grade
ASME B40.100 Grade B
Vibration Resistance
None
Bezel Material
Steel
Dial Face Material
Aluminum
Removable Bezel
No
Dial Color
White
Includes Mounting Hardware
No
Field Fillable
No
Case Construction
Welded Joint
Case Finish
Painted
Dry Dampening Feature
None
Scale Type
Dual
Includes Calibration Certificate
No
Process Temperature Range
-40 Degrees to 150 Degrees F
Freeze Resistant Movement
No
Cleaned for Oxygen Service
No
Pressure Range Type
Pressure
Secondary Pressure Range
0 to 1,400
Pointer Color
Black
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Movement Material
Brass
Includes Vent Plug
No
Operating Temperature Range
-40 Degrees to 150 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Maximum
1,400 kPa
IP Rating
IP52
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
200 psi
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Minimum
-40 Degrees F
Case Liquid
None
NEMA Enclosure Rating
5
Secondary Scale Pressure Measurement - Minimum
0 kPa

Description

Commercial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge, Liquid-Filled Case No
