  9. Gas Line Pressure Test Kit, 0 to 6 psi, 4 in Dial, 3/4 in NPT, Bottom Location, Steel Case Material

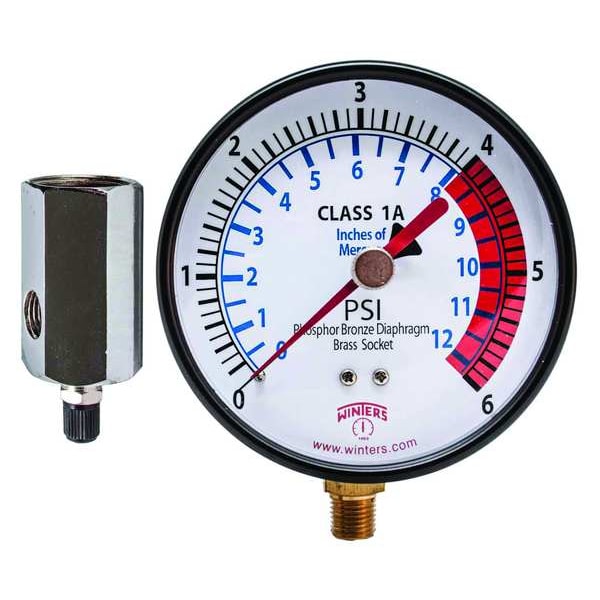

Winters Gas Line Pressure Test Kit, 0 to 6 psi, 4 in Dial, 3/4 in NPT, Bottom Location, Steel Case Material PGTK314CM - main

Gas Line Pressure Test Kit, 0 to 6 psi, 4 in Dial, 3/4 in NPT, Bottom Location, Steel Case Material

  • Mfr # PGTK314CM

  • Zoro # G1936722

product price: $80.39
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
3/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PGTK314CM
Zoro #
G1936722
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
3/4 in
Dial Size (In.)
4 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
4 in
Case Depth
0.855 in
Gauge Case Depth
0.855 in
Nominal Dial Diameter
4 in

Details

Item
Gas Line Pressure Test Kit
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, Air Filters, Gas Measurement, Low Pressure, Ovens, Regulators and Respirators
Gauge Case Material
Steel
Series
PGTK
Lens Material
Polycarbonate
Primary Pressure Range
0 to 6
Primary Scale Units
psi
Liquid-Filled Case
No
Gauge Secondary Range Values
0 to 70,000
Gauge Primary Range Smallest Graduation
0.5/5
Smallest Graduation
0.1 psi/1 kPa
Calibration Certificate Included
No
For Use With
Media Compatible with Bronze
Gauge Primary Range Numbered Graduations
1/10
Case Color
Black
Socket Material
Brass
Includes
Test Block
Connection Type
MNPT
Standards
ASME, CRN
Accuracy Grade
ASME B40.100 Grade 1A
Pointer Characteristics
Micrometer Adjustable
Dial Face Material
Aluminum
Freeze Resistant Movement
No
Process Temperature Range
-40 Degrees to 150 Degrees F
Scale Type
Dual
Secondary Pressure Range
0 to 12
Compatible Process Media
Bronze
Sensor Material
Brass
Pressure Range Type
Pressure
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Sensor Type
Diaphragm
Pressure Gauge Type
Gas Line Pressure Test Kit
Secondary Scale Units
in Hg
Pointer Material
Aluminum
Over-Pressure Limit
25% of Full Scale
Case Finish
Painted
Dial Color
White
Accuracy Scale
Full Scale
Adjustable Pointer
Adjustable Red Set Pointer
Process Connection Gender
Female
Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature - Maximum
150 Degrees F
Gauge Case Finish
Painted
Secondary Scale Vacuum Measurement - Maximum
12 in Hg
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
6 psi
Process Media Temperature - Maximum
150 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Vacuum Measurement - Minimum
0 in Hg
Operating Temperature - Minimum
-40 Degrees F

Description

Low Pressure Test Kit, Range 0 to 100 In. H2O, 58 oz./sq. in, Temperature Range (F) -40 Degrees to 150 Degrees , Includes Carrying Case, Tube Nipple, Hose Tube, Clamp, Manufacturers Warranty Length 5 yr.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
