  5. Industrial Compound Gauge, 30 to 0 to 100 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

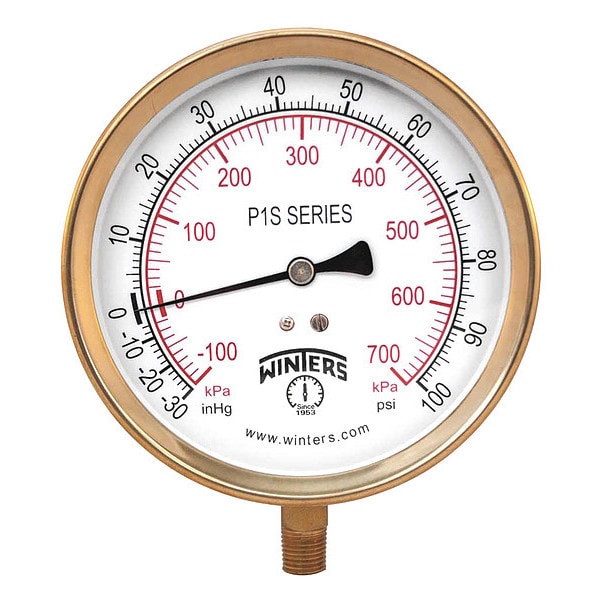

Winters Industrial Compound Gauge, 30 to 0 to 100 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location P1S414 - main

Industrial Compound Gauge, 30 to 0 to 100 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P1S414

  • Zoro # G1604405

product price:  $47.79
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P1S414
Zoro #
G1604405
UPC #
628311255478
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in
Manufacturer Warranty Length
5 yr
Case Diameter
5.076 in
Case Depth
1.275 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial, Refrigeration, HVAC/R, Plumbing
Gauge Case Material
Aluminum
Series
P1S 100
Lens Material
Glass
Primary Pressure Range
30 to 0 to 100
Primary Scale Units
in Hg/psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Standards
ANSI/ASME, CRN
Calibration Certificate Included
No
Case Color
Black
Gauge Secondary Range Values
0 to 70,000
Gauge Primary Range Smallest Graduation
10/5/50
Case Material
Aluminum
Smallest Graduation
2 in Hg/1 psi/10 kPa
Gauge Primary Range Numbered Graduations
30/10/10
Socket Material
Brass
Gauge Special Options
Heavy Duty
For Use With
Media Compatible with Bronze
Connection Type
MNPT
Includes Vent Plug
No
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Vibration Resistance
None
Removable Bezel
No
Pointer Color
Black
Bezel Material
Brass
Process Connection Gender
Male
Secondary Scale Units
kPa
Case Finish
Painted
Accuracy Scale
Full Scale
Pressure Range Type
Compound
Pointer Material
Aluminum
Sensor Material
Phosphor Bronze
Over-Pressure Limit
25%
Dial Color
White
Includes Mounting Hardware
No
Cleaned for Oxygen Service
No
Non-Sparking
No
Scale Type
Dual
Field Fillable
No
Sensor Type
Bourdon Tube
Dry Dampening Feature
None
Gauge Case Liquid
None
Accuracy Grade
ASME B40.100 Grade 1A
Movement Material
Brass
Dial Face Material
Aluminum
Includes Calibration Certificate
No
Freeze Resistant Movement
No
Pressure Gauge Type
Industrial Pressure Gauge
Case Construction
Welded Joint
Process Temperature Range
-40 Degrees to 200 Degrees F
Secondary Pressure Range
0 to 700
Operating Temperature Range
-40 Degrees to 200 Degrees F
Case Liquid
None
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Process Media Temperature - Maximum
200 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
200 Degrees F
IP Rating
IP52
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Minimum
0 in Hg
NEMA Enclosure Rating
5
Process Media Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
100 psi
Secondary Scale Pressure Measurement - Maximum
700 kPa
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa

Description

Industrial Compound Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 30 to 0 to 100, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
