  5. Industrial Compound Gauge, 30 to 0 to 30 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

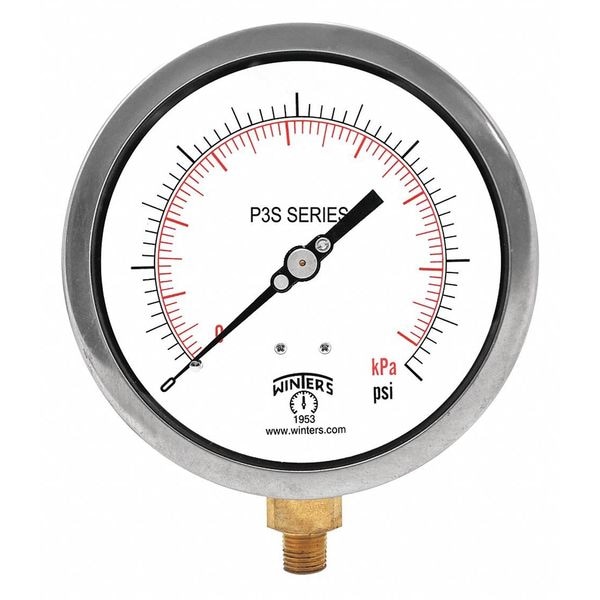

Winters Industrial Compound Gauge, 30 to 0 to 30 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location P3S6002 - main

Industrial Compound Gauge, 30 to 0 to 30 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P3S6002

  • Zoro # G1937273

product price:  $57.59
/ea

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P3S6002
Zoro #
G1937273
UPC #
628311282030
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Manufacturer Warranty Length
5 yr
Case Depth
2 in
Nominal Dial Size
4 1/2 in
Case Diameter
4.92 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Boilers
Gauge Case Material
Aluminum
Series
P3S 300
Lens Material
Glass
Primary Pressure Range
30 to 0 to 30
Primary Scale Units
in Hg/psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
5/1/10
For Use With
Air, Brass, Fresh Water, Industrial Applications, Media Compatible with Copper Alloy, Oil, Steam
Case Color
Black
Gauge Secondary Range Values
0 to 70,000
Calibration Certificate Included
No
Smallest Graduation
1 in Hg/0.5 psi/5 kPa
Gauge Special Options
Heavy Duty
Gauge Primary Range Numbered Graduations
10/5/50
Case Material
Aluminum
Socket Material
Brass
Connection Type
MNPT
Standards
ANSI/ASME, ASME, CRN
Dial Face Material
Aluminum
Case Finish
Painted
Freeze Resistant Movement
No
Dry Dampening Feature
None
Scale Type
Dual
Bezel Material
Stainless Steel
Movement Material
Brass
Field Fillable
No
Includes Mounting Hardware
No
Includes Vent Plug
No
Secondary Pressure Range
0 to 210
Pointer Material
Aluminum
Pressure Gauge Type
Industrial Pressure Gauge
Pointer Characteristics
Micrometer Adjustable
Accuracy Grade
ASME B40.100 Grade 2A
Process Connection Gender
Male
Pressure Range Type
Compound
Dial Color
White
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Accuracy Scale
Full Scale
Over-Pressure Limit
30%
Compatible Process Media
Air, Fresh Water, Oil, Steam
Vibration Resistance
None
Process Temperature Range
-40 Degrees to 150 Degrees F
Non-Sparking
No
Sensor Type
Bourdon Tube
Pointer Color
Black
Gauge Case Liquid
None
Case Construction
Welded Joint
Removable Bezel
No
Includes Calibration Certificate
No
Cleaned for Oxygen Service
No
Sensor Material
Phosphor Bronze
Secondary Scale Units
kPa
Operating Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Primary Scale Vacuum Measurement - Maximum
30 in Hg
IP Rating
IP52
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
30 psi
Process Media Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
5
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Maximum
150 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Case Liquid
None
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Maximum
210 kPa

Description

Industrial Compound Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 30 to 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
