  5. Industrial Compound Gauge, 30 to 0 to 60 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

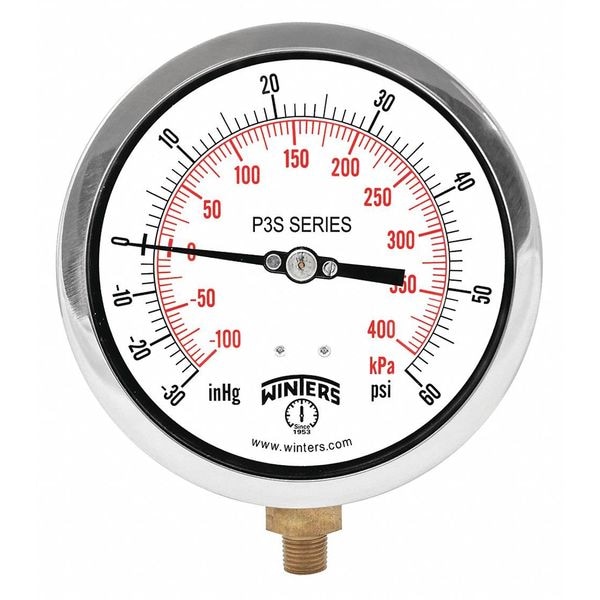

Winters Industrial Compound Gauge, 30 to 0 to 60 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location P3S6003 - main

Industrial Compound Gauge, 30 to 0 to 60 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P3S6003

  • Zoro # G1604195

product price:  $50.79
/ea

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P3S6003
Zoro #
G1604195
UPC #
628311282047
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Case Diameter
4.92 in
Nominal Dial Size
4 1/2 in
Manufacturer Warranty Length
5 yr
Case Depth
2 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Boilers
Gauge Case Material
Aluminum
Series
P3S 300
Lens Material
Glass
Primary Pressure Range
30 to 0 to 60
Primary Scale Units
in Hg/psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Material
Aluminum
Gauge Primary Range Numbered Graduations
10/10/50
Gauge Secondary Range Values
0 to 70,000
Case Color
Black
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
5/1/10
Smallest Graduation
1 in Hg/0.5 psi/5 kPa
Socket Material
Brass
Standards
ANSI/ASME, ASME, CRN
For Use With
Air, Brass, Fresh Water, Industrial Applications, Media Compatible with Copper Alloy, Oil, Steam
Connection Type
MNPT
Gauge Special Options
Heavy Duty
Includes Vent Plug
No
Secondary Pressure Range
0 to 410
Pressure Gauge Type
Industrial Pressure Gauge
Movement Material
Brass
Case Construction
Welded Joint
Case Finish
Painted
Pointer Characteristics
Micrometer Adjustable
Pressure Range Type
Compound
Accuracy Grade
ASME B40.100 Grade 2A
Freeze Resistant Movement
No
Secondary Scale Units
kPa
Vibration Resistance
None
Gauge Case Liquid
None
Dry Dampening Feature
None
Sensor Type
Bourdon Tube
Dial Color
White
Pointer Material
Aluminum
Non-Sparking
No
Compatible Process Media
Air, Fresh Water, Oil, Steam
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Includes Mounting Hardware
No
Accuracy Scale
Full Scale
Process Temperature Range
-40 Degrees to 150 Degrees F
Cleaned for Oxygen Service
No
Sensor Material
Phosphor Bronze
Dial Face Material
Aluminum
Includes Calibration Certificate
No
Removable Bezel
No
Pointer Color
Black
Process Connection Gender
Male
Scale Type
Dual
Field Fillable
No
Bezel Material
Stainless Steel
Over-Pressure Limit
30%
Operating Temperature Range
-40 Degrees to 150 Degrees F
IP Rating
IP52
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
410 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Process Media Temperature - Maximum
150 Degrees F
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
None
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Primary Scale Pressure Measurement - Maximum
60 psi
Process Media Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
5
Compatible with Brand
Universal

Description

Industrial Compound Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 30 to 0 to 60, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
