  5. Industrial Pressure Gauge, 0 to 400 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

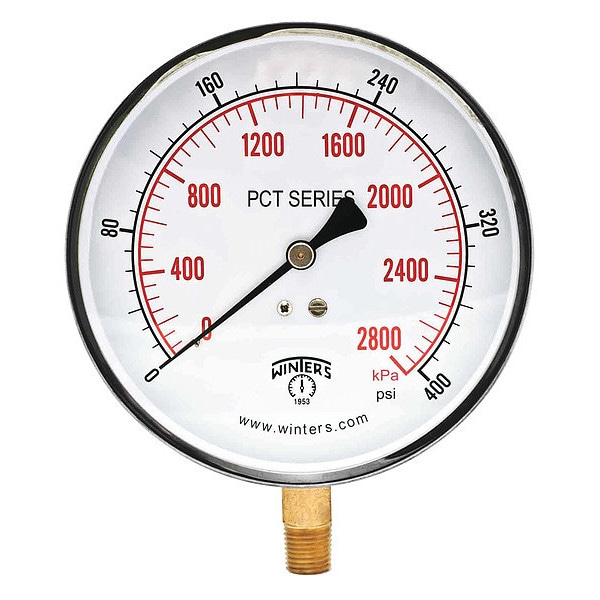

Winters Industrial Pressure Gauge, 0 to 400 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location PCT327 - main

Industrial Pressure Gauge, 0 to 400 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PCT327

  • Zoro # G1604371

product price:  $27.25
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PCT327
Zoro #
G1604371
UPC #
628311251142
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Manufacturer Warranty Length
5 yr
Case Diameter
4.92 in
Nominal Dial Size
4 1/2 in
Case Depth
1.18 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial
Gauge Case Material
304 Stainless Steel
Series
PCT
Lens Material
Acrylic
Primary Pressure Range
0 to 400
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
5 psi/50 kPa
Gauge Primary Range Numbered Graduations
50/400
Case Material
304 Stainless Steel
Standards
ASME, CRN
Socket Material
Brass
Gauge Primary Range Smallest Graduation
10/100
Gauge Secondary Range Values
0 to 2800
For Use With
Media Compatible with Bronze
Connection Type
MNPT
Case Color
Metallic
Calibration Certificate Included
No
Gauge Special Options
Zero Adjustment Screw
Secondary Pressure Range
0 to 2,800
Cleaned for Oxygen Service
No
Dial Color
White
Accuracy Scale
Full Scale
Process Connection Gender
Male
Includes Calibration Certificate
No
Dry Dampening Feature
None
Over-Pressure Limit
25%
Sensor Material
Phosphor Bronze
Pressure Range Type
Pressure
Case Construction
Welded Joint
Pointer Material
Aluminum
Bezel Material
304 Stainless Steel
Freeze Resistant Movement
No
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Includes Mounting Hardware
No
Scale Type
Dual
Secondary Scale Units
kPa
Includes Vent Plug
No
Gauge Case Liquid
None
Pressure Gauge Type
Industrial Pressure Gauge
Compatible Process Media
Air, Steam, Water
Sensor Type
Bourdon Tube
Dial Face Material
Aluminum
Removable Bezel
No
Movement Material
Brass
Field Fillable
No
Pointer Color
Black
Vibration Resistance
None
Process Temperature Range
-40 Degrees to 200 Degrees F
Non-Sparking
No
Accuracy Grade
ASME B40.100 Grade 1A
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
5
Primary Scale Pressure Measurement - Maximum
400 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
2,800 kPa
IP Rating
IP52
Compatible with Brand
Universal
Process Media Temperature - Maximum
200 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Case Liquid
None
Secondary Scale Pressure Measurement - Minimum
0 kPa

Description

Industrial Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP52, Primary Pressure Range 0 to 400, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
