  5. Industrial Pressure Gauge, 0 to 60 psi, 6 in Dial, 1/4 in NPT, Bottom Location

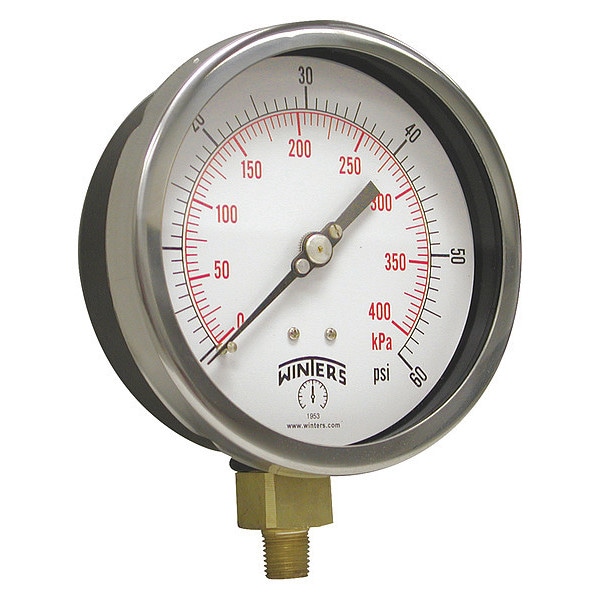

Winters Industrial Pressure Gauge, 0 to 60 psi, 6 in Dial, 1/4 in NPT, Bottom Location P3S6085 - main

Industrial Pressure Gauge, 0 to 60 psi, 6 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P3S6085

  • Zoro # G7558234

product price:  $75.15
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P3S6085
Zoro #
G7558234
UPC #
628311283112
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
6 in
Case Depth
2 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
6 in
Case Diameter
6.342 in
Nominal Dial Diameter
6 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Boilers
Gauge Case Material
Aluminum
Series
P3S 300
Lens Material
Glass
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
For Use With
Air, Brass, Fresh Water, Industrial Applications, Media Compatible with Copper Alloy, Oil, Steam
Gauge Secondary Range Values
0 to 410
Connection Location
Bottom
Case Color
Black
Case Material
Aluminum
Socket Material
Brass
Standards
ANSI/ASME, ASME, CRN
Connection Type
MNPT
Compatible Process Media
Air, Fresh Water, Oil, Steam
Pointer Characteristics
Micrometer Adjustable
Non-Sparking
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Pressure Gauge Type
Industrial Pressure Gauge
Sensor Type
Bourdon Tube
Pointer Color
Black
Removable Bezel
No
Scale Type
Dual
Secondary Scale Units
kPa
Pressure Range Type
Pressure
Includes Calibration Certificate
No
Process Temperature Range
-40 Degrees to 150 Degrees F
Process Connection Gender
Male
Bezel Material
Stainless Steel
Dry Dampening Feature
None
Sensor Material
Phosphor Bronze
Secondary Pressure Range
0 to 410
Over-Pressure Limit
30%
Gauge Case Liquid
None
Case Finish
Polished
Includes Vent Plug
No
Accuracy Grade
ASME B40.100 Grade 2A
Movement Material
Brass
Vibration Resistance
None
Accuracy Scale
Full Scale
Freeze Resistant Movement
No
Dial Color
White
Includes Mounting Hardware
No
Dial Face Material
Aluminum
Field Fillable
No
Pointer Material
Aluminum
Cleaned for Oxygen Service
No
Case Construction
Welded Joint
IP Rating
IP52
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Minimum
-40 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
60 psi
Operating Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
5
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
150 Degrees F
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Maximum
410 kPa
Case Liquid
None

Description

Industrial Pressure Gauge, Nominal Dial Size 6 in, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
