  5. Industrial Vacuum Gauge, 30 to 0 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

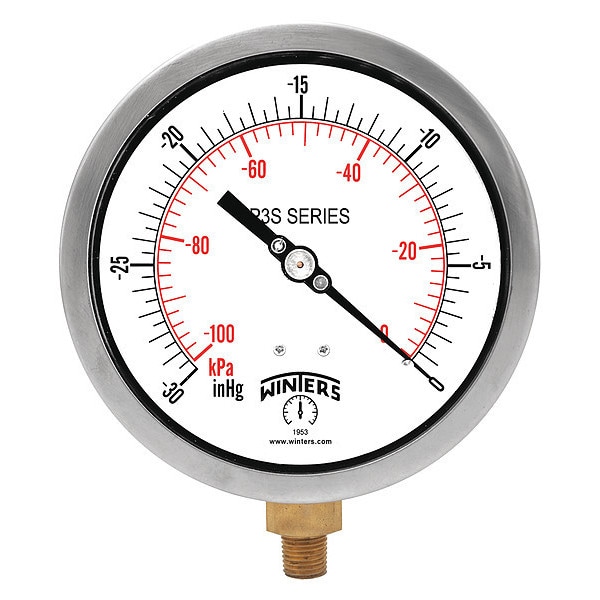

Winters Industrial Vacuum Gauge, 30 to 0 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location P3S6000 - main

Industrial Vacuum Gauge, 30 to 0 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P3S6000

  • Zoro # G1937413

product price:  $57.29
/ea

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P3S6000
Zoro #
G1937413
UPC #
628311282016
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Case Depth
2 in
Case Diameter
4.92 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
4 1/2 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Vacuum Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Boilers
Gauge Case Material
Aluminum
Series
P3S 300
Lens Material
Glass
Primary Pressure Range
30 to 0
Primary Scale Units
in Hg
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
1/5
Gauge Secondary Range Values
-100 to 0
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
5/10
Smallest Graduation
0.5 in Hg/1 kPa
Gauge Special Options
Heavy Duty
Case Color
Black
For Use With
Air, Brass, Fresh Water, Industrial Applications, Media Compatible with Copper Alloy, Oil, Steam
Socket Material
Brass
Case Material
Aluminum
Standards
ANSI/ASME, ASME, CRN
Connection Type
MNPT
Process Temperature Range
-40 Degrees to 150 Degrees F
Freeze Resistant Movement
No
Compatible Process Media
Air, Fresh Water, Oil, Steam
Field Fillable
No
Scale Type
Dual
Cleaned for Oxygen Service
No
Bezel Material
Stainless Steel
Secondary Scale Units
kPa
Dry Dampening Feature
None
Process Connection Gender
Male
Sensor Material
Bronze
Includes Calibration Certificate
No
Pointer Color
Black
Accuracy Grade
ASME B40.100 Grade 2A
Case Finish
Painted
Over-Pressure Limit
30%
Pointer Material
Aluminum
Removable Bezel
No
Includes Vent Plug
No
Pointer Characteristics
Micrometer Adjustable
Sensor Type
Bourdon Tube
Dial Color
White
Gauge Case Liquid
None
Pressure Gauge Type
Industrial Pressure Gauge
Secondary Pressure Range
-101 to 0
Movement Material
Brass
Includes Mounting Hardware
No
Non-Sparking
No
Pressure Range Type
Vacuum
Accuracy Scale
Full Scale
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Vibration Resistance
None
Case Construction
Welded Joint
Dial Face Material
Aluminum
Operating Temperature Range
-40 Degrees to 150 Degrees F
IP Rating
IP52
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Minimum
0 in Hg
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Vacuum Measurement - Maximum
0 kPa
Process Media Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
-30 in Hg
Secondary Scale Pressure Measurement - Minimum
0 kPa
Case Liquid
None
Secondary Scale Pressure Measurement - Maximum
-100 kPa
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Vacuum Measurement - Minimum
-101 kPa
Compatible with Brand
Universal
NEMA Enclosure Rating
5

Description

Industrial Vacuum Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
