- MFR #
- PFQ1260-DRY
- Zoro #
- G1604913
- UPC #
- -
- Country of Origin
- China
- Item

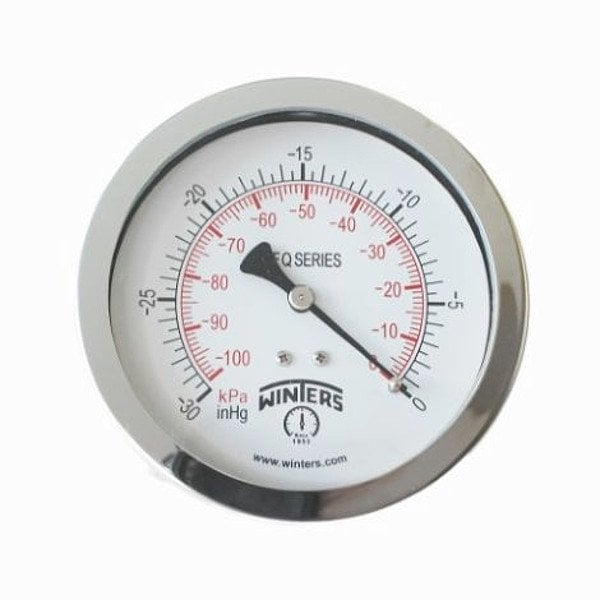

- Industrial Vacuum Gauge
- Accuracy
- +/-1.5%
- Process Connection Location
- Center Back
- Process Connection Type
- NPT
- Application
- Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
- Gauge Case Material
- 304 Stainless Steel
- Series
- PFQ
- Lens Material
- Polycarbonate
- Primary Pressure Range
- 30 to 0
- Primary Scale Units
- in Hg
- IP/NEMA Rating
- IP65
- Liquid-Filled Case
- No
- Hazardous Location Rating
- Not Rated
- Panel-Mountable
- No
- Blowout Safety Back
- No
- Gauge Secondary Range Values
- -100 to 0
- For Use With
- Media Compatible with 316L Stainless Steel
- Case Material
- 304 Stainless Steel
- Socket Material
- 316 Stainless Steel
- Calibration Certificate Included
- No
- Case Color
- Metallic
- Gauge Special Options
- Heavy Duty
- Standards
- ASME, CRN
- Connection Type
- MNPT
- Features
- Ring Terminal
- Gauge Primary Range Numbered Graduations
- 5/10
- Gauge Application
- Corrosion-Resistant Case
- Gauge Primary Range Smallest Graduation
- 1/5
- Pointer Material
- Aluminum
- Pointer Color
- Black
- Gauge Case Liquid
- None
- Movement Material
- Stainless Steel
- Bezel Gasket Material
- Silicone
- Vibration Resistance
- Field-Fillable
- Non-Sparking
- No
- Pressure Gauge Type
- Industrial Pressure Gauge
- Sensor Material
- 316 Stainless Steel
- Secondary Scale Units
- kPa
- Over-Pressure Limit
- 25%
- Process Temperature Range
- -40 Degrees to 200 Degrees F
- Ambient Operating Temperature Range
- -40 Degrees to 200 Degrees F
- Process Connection Gender
- Male
- Includes Vent Plug
- Yes
- Pressure Range Type
- Vacuum
- Accuracy Scale
- Full Scale
- Dry Dampening Feature
- None
- Includes Calibration Certificate
- No
- Compatible Process Media
- Air, Water
- Sensor Type
- Bourdon Tube
- Field Fillable
- Yes
- Freeze Resistant Movement
- No
- Bezel Material
- 304 Stainless Steel
- Secondary Pressure Range
- -101 to 0 kPa
- Dial Face Material
- Aluminum
- Scale Type
- Dual
- Cleaned for Oxygen Service
- No
- Includes Mounting Hardware
- No
- Dial Color
- White
- Case Construction
- Welded Joint
- Bezel Mounting Type
- Crimped
- Removable Bezel
- Yes
- Operating Temperature Range
- -40 Degrees to 200 Degrees F
- Process Media Temperature - Minimum
- -40 Degrees F
- IP Rating
- IP65
- Secondary Scale Pressure Measurement - Maximum
- -100 kPa
- Compatible with Brand
- Universal
- Process Media Temperature - Maximum
- 200 Degrees F
- Case Liquid
- None
- Secondary Scale Vacuum Measurement - Maximum
- 0 kPa
- Operating Temperature - Maximum
- 200 Degrees F
- Operating Temperature - Minimum
- -40 Degrees F
- Secondary Scale Vacuum Measurement - Minimum
- -101 kPa
- Primary Scale Vacuum Measurement - Maximum
- 30 in Hg
- Primary Scale Vacuum Measurement - Minimum
- 0 in Hg
- NEMA Enclosure Rating
- 4
- Secondary Scale Pressure Measurement - Minimum
- 0 kPa
