- MFR #
- PFQ708LF
- Zoro #
- G9756476
- UPC #
- 628311266580
- Country of Origin
- China
- Item

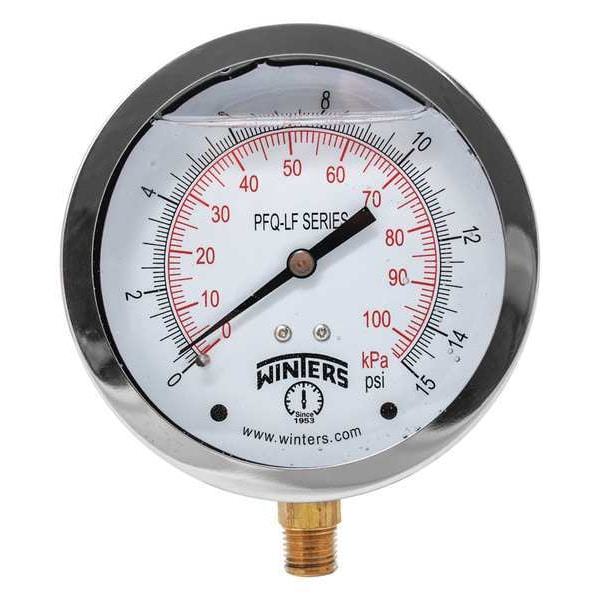

- Lead-Free Pressure Gauge
- Accuracy
- +/-1.50%
- Process Connection Location
- Bottom
- Process Connection Type
- NPT
- Application
- Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
- Gauge Case Material
- 304 Stainless Steel
- Series
- PFQ-LF
- Lens Material
- Plastic
- Primary Pressure Range
- 0 to 15
- Primary Scale Units
- psi
- IP/NEMA Rating
- IP65
- Liquid-Filled Case
- Yes
- Hazardous Location Rating
- Not Rated
- Panel-Mountable
- No
- Blowout Safety Back
- No
- Gauge Special Options
- Restricted Orifice
- For Use With
- Ideal for Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment
- Gauge Filled With
- Glycerin
- Case Color
- Metallic
- Required Gauge Adapter
- No
- Gauge Application
- Ideal for Pumps, Compressors, Hydraulic Presses, Machinery, Pneumatic Equipment and Motors in Harsh Environments
- Characteristics
- Crimp-On Bezel, CRN Registered, Pulsation Resistant, Restricted Orifice
- Calibration Certificate Included
- No
- Case Material
- 304 Stainless Steel
- Socket Material
- Lead Free Brass
- NSF Certified
- Yes
- Standards
- ASME, CRN
- Wetted Materials
- Brass / Bronze
- Connection Type
- MNPT
- Dial Color
- White
- Dial Face Material
- Aluminum
- Bezel Material
- 304 Stainless Steel
- Case Construction
- Welded Joint
- Over-Pressure Limit
- 25%
- Bezel Gasket Material
- Silicone
- Sensor Type
- Bourdon Tube
- Dry Dampening Feature
- None
- Includes Calibration Certificate
- No
- Process Connection Gender
- Male
- Pointer Color
- Black
- Sensor Material
- Phosphor Bronze
- Bezel Mounting Type
- Crimped
- Pointer Material
- Aluminum
- Ambient Operating Temperature Range
- -4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C)
- Secondary Pressure Range
- 0 to 100
- Cleaned for Oxygen Service
- No
- Removable Bezel
- Yes
- Process Temperature Range
- -4 Degrees to 150 Degrees F
- Freeze Resistant Movement
- No
- Pressure Gauge Type
- Lead-Free Pressure Gauge
- Movement Material
- Lead Free Brass
- Includes Vent Plug
- Yes
- Scale Type
- Dual
- Accuracy Scale
- Full Scale
- Field Fillable
- No
- Pressure Range Type
- Pressure
- Gauge Case Liquid
- Glycerin
- Secondary Scale Units
- kPa
- Includes Mounting Hardware
- No
- Non-Sparking
- No
- Vibration Resistance
- Liquid-Filled
- Maximum Pressure
- 15
- Operating Temperature Range
- -4 Degrees to 150 Degrees F
- NEMA Enclosure Rating
- 4
- Compatible with Brand
- Universal
- Operating Temperature - Minimum
- -4 Degrees F
- Secondary Scale Pressure Measurement - Maximum
- 100 kPa
- Process Media Temperature - Maximum
- 150 Degrees F
- Process Media Temperature - Minimum
- -4 Degrees F
- Primary Scale Pressure Measurement - Maximum
- 15 psi
- Primary Scale Pressure Measurement - Minimum
- 0 psi
- Case Liquid
- Glycerin
- Secondary Scale Pressure Measurement - Minimum
- 0 kPa
- Operating Temperature - Maximum
- 150 Degrees F
- IP Rating
- IP65
