  5. Lead-Free Pressure Gauge, 0 to 200 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

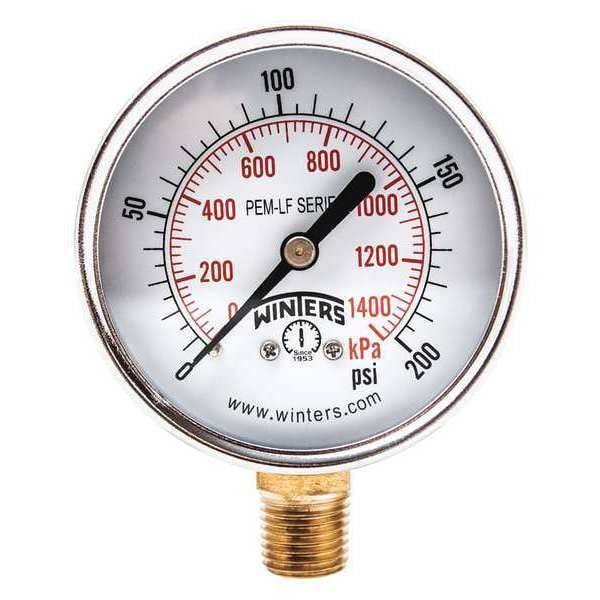

Winters Lead-Free Pressure Gauge, 0 to 200 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PEM216LF - main

Lead-Free Pressure Gauge, 0 to 200 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PEM216LF

  • Zoro # G6141116

product price:  $14.29
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM216LF
Zoro #
G6141116
UPC #
628311202663
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.189"
Nominal Dial Size
2 1/2 in
Case Diameter
2.488 in
Manufacturer Warranty Length
5 yr
Case Depth
1.102 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Plastic
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Black
Calibration Certificate Included
No
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
Characteristics
Friction Bezel Ring
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Case Material
Steel
Socket Material
Lead Free Brass
NSF Certified
Yes
Wetted Materials
Brass / Bronze
Standards
ANSI/ASME, CRN, NSF
Connection Type
MNPT
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Includes Mounting Hardware
No
Dry Dampening Feature
None
Process Temperature Range
-40 Degrees to 150 Degrees F
Scale Type
Dual
Over-Pressure Limit
25% of Full Scale
Case Finish
Painted
Vibration Resistance
None
Freeze Resistant Movement
No
Pressure Gauge Type
Lead-Free Pressure Gauge
Movement Material
Stainless Steel
Includes Calibration Certificate
No
Case Construction
Welded Joint
Removable Bezel
No
Sensor Type
Bourdon Tube
Secondary Pressure Range
0 to 1,400
Pressure Range Type
Pressure
Non-Sparking
No
Field Fillable
No
Dial Color
White
Dial Face Material
Aluminum
Pointer Color
Black
Accuracy Grade
Grade B
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Pointer Material
Aluminum
Process Connection Gender
Male
Bezel Material
Steel
Cleaned for Oxygen Service
No
Gauge Case Liquid
None
Sensor Material
Phosphor Bronze
Secondary Scale Units
kPa
Accuracy Scale
Mid-Scale
Includes Vent Plug
No
Maximum Pressure
200
Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
200 psi
Process Media Temperature - Maximum
150 Degrees F
Case Liquid
None
NEMA Enclosure Rating
5
Secondary Scale Pressure Measurement - Minimum
0 kPa
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Maximum
1,400 kPa
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP52
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Lead-Free Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge, Liquid-Filled Case No
