  5. Lead-Free Pressure Gauge, 0 to 300 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

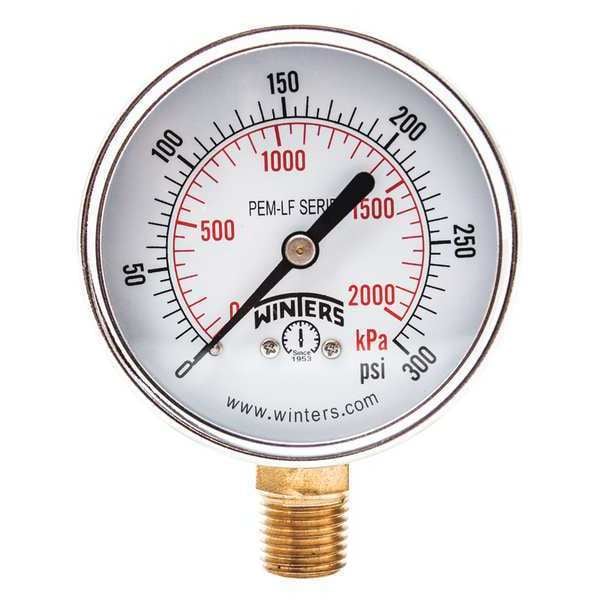

Winters Lead-Free Pressure Gauge, 0 to 300 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PEM217LF - main

Lead-Free Pressure Gauge, 0 to 300 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PEM217LF

  • Zoro # G6147924

product price:  $13.69
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM217LF
Zoro #
G6147924
UPC #
628311202670
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.189"
Case Depth
1.102 in
Case Diameter
2.488 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
2 1/2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Plastic
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Case Color
Black
Calibration Certificate Included
No
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
Characteristics
Friction Bezel Ring
Socket Material
Lead Free Brass
Case Material
Steel
NSF Certified
Yes
Standards
ANSI/ASME, CRN, NSF
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Over-Pressure Limit
25% of Full Scale
Scale Type
Dual
Non-Sparking
No
Sensor Material
Phosphor Bronze
Field Fillable
No
Process Connection Gender
Male
Vibration Resistance
None
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Bezel Material
Steel
Movement Material
Stainless Steel
Case Construction
Welded Joint
Accuracy Grade
Grade B
Includes Calibration Certificate
No
Pointer Material
Aluminum
Removable Bezel
No
Includes Vent Plug
No
Gauge Case Liquid
None
Freeze Resistant Movement
No
Pressure Gauge Type
Lead-Free Pressure Gauge
Dry Dampening Feature
None
Sensor Type
Bourdon Tube
Pointer Color
Black
Case Finish
Painted
Dial Face Material
Aluminum
Secondary Scale Units
kPa
Pressure Range Type
Pressure
Includes Mounting Hardware
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Cleaned for Oxygen Service
No
Accuracy Scale
Mid-Scale
Dial Color
White
Secondary Pressure Range
0 to 2,100
Process Temperature Range
-40 Degrees to 150 Degrees F
Maximum Pressure
300
Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
2,100 kPa
Compatible with Brand
Universal
Process Media Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
5
Operating Temperature - Maximum
150 Degrees F
IP Rating
IP52
Primary Scale Pressure Measurement - Maximum
300 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
Process Media Temperature - Maximum
150 Degrees F
Case Liquid
None

Description

Lead-Free Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge, Liquid-Filled Case No
