  5. Lead-Free Vacuum Gauge, 30 to 0 psi, 4 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material

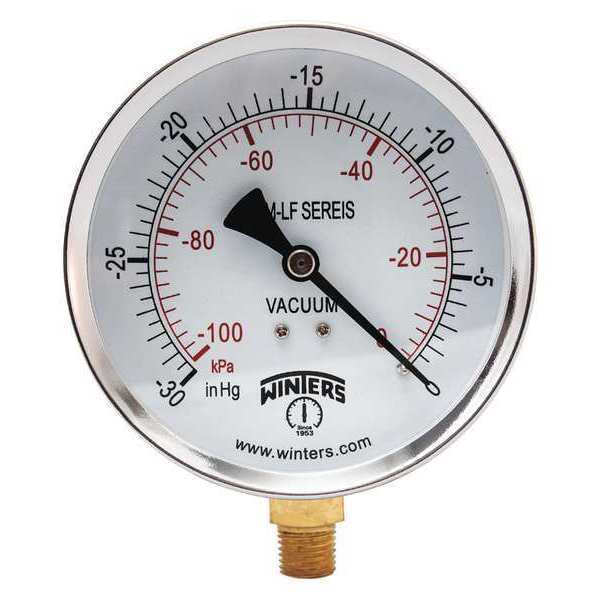

Winters Lead-Free Vacuum Gauge, 30 to 0 psi, 4 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material PEM220LF - main

Lead-Free Vacuum Gauge, 30 to 0 psi, 4 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material

  • Mfr # PEM220LF

  • Zoro # G6084102

product price:  $24.89
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PEM220LF
Zoro #
G6084102
UPC #
628311202731
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Length
4.90"
Manufacturer Warranty Length
5 yr
Case Diameter
3.941 in
Case Depth
1.46 in
Nominal Dial Size
4 in
Nominal Dial Diameter
4 in

Details

Item
Lead-Free Vacuum Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Glass
Primary Pressure Range
30 to 0
Primary Scale Units
in Hg
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Gauge Secondary Range Values
-100 to 0
Characteristics
Friction Bezel Ring
Case Color
Black
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
Calibration Certificate Included
No
Socket Material
Lead Free Brass
Case Material
Steel
NSF Certified
Yes
Wetted Materials
Brass / Bronze
Standards
ANSI/ASME, CRN, NSF
Connection Type
MNPT
Gauge Case Liquid
None
Dial Face Material
Aluminum
Secondary Pressure Range
-101 to 0
Accuracy Scale
Mid-Scale
Bezel Material
Steel
Pointer Color
Black
Sensor Material
Bronze
Pointer Material
Aluminum
Includes Calibration Certificate
No
Scale Type
Dual
Over-Pressure Limit
25%
Movement Material
Lead Free Brass
Field Fillable
No
Case Finish
Painted
Case Construction
Welded Joint
Freeze Resistant Movement
No
Pressure Gauge Type
Lead-Free Pressure Gauge
Cleaned for Oxygen Service
No
Dry Dampening Feature
None
Non-Sparking
No
Process Connection Gender
Male
Dial Color
White
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Includes Vent Plug
No
Removable Bezel
No
Vibration Resistance
None
Includes Mounting Hardware
No
Process Temperature Range
-40 Degrees to 150 Degrees F
Sensor Type
Bourdon Tube
Secondary Scale Units
kPa
Accuracy Grade
Grade B
Pressure Range Type
Vacuum
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Operating Temperature Range
-40 Degrees to 150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
NEMA Enclosure Rating
5
Primary Scale Pressure Measurement - Minimum
0 in Hg
Operating Temperature - Minimum
-40 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Secondary Scale Pressure Measurement - Maximum
-100 kPa
Secondary Scale Vacuum Measurement - Maximum
0 kPa
Case Liquid
None
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Secondary Scale Vacuum Measurement - Minimum
-101 kPa
Primary Scale Pressure Measurement - Maximum
30 in Hg
Compatible with Brand
Universal
IP Rating
IP52
Operating Temperature - Maximum
150 Degrees F
Process Media Temperature - Maximum
150 Degrees F

Description

Lead-Free Vacuum Gauge, Nominal Dial Size 4 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge, Liquid-Filled Case No
