  9. Low Pressure Gas Test Kit, 0 to 5 psi
Winters Low Pressure Gas Test Kit, 0 to 5 psi PLPT0005 - main

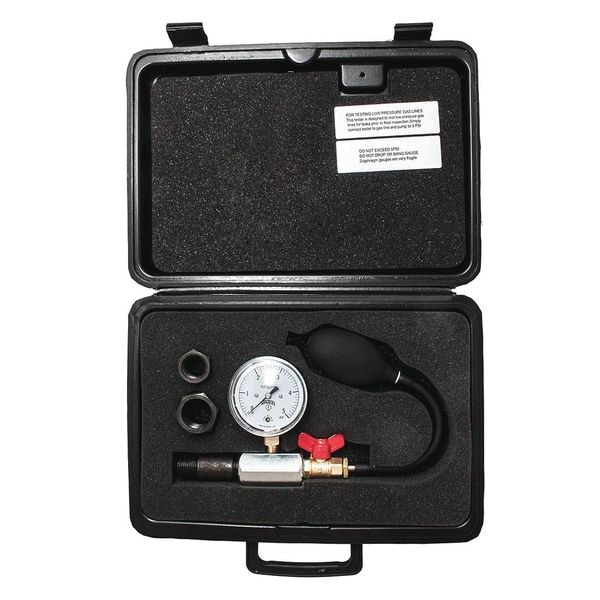

Low Pressure Gas Test Kit, 0 to 5 psi

  • Mfr # PLPT0005

  • Zoro # G0170637

product price: $139.99
/ea
Free Shipping & Returns

Key Features

Manufacturers Warranty Length
1 yr
Range
0 to 5 psi
Includes
Hand Pump and Hose, Mini Ball Valve, Nipple and Fittings, Test Block
Accuracy
+/-3-2-3%
Pressure Range
0 to 5 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PLPT0005
Zoro #
G0170637
UPC #
628311900026
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Nominal Dial Size
2 1/2 in
Process Connection Size
1/2 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
2 1/2 in

Details

Item
Low Pressure Gas Test Kit
Range
0 to 5 psi
Includes
Hand Pump and Hose, Mini Ball Valve, Nipple and Fittings, Test Block
Accuracy
+/-3-2-3%
Pressure Range
0 to 5 psi
Socket Material
Brass
Pointer Material
Aluminum
Compatible Process Media
Gas
Pressure Gauge Type
Gas Line Pressure Test Kit
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Gauge Case Material
Steel
Dial Color
White
Temperature Scale Units
Degrees C, Degrees F
Primary Pressure Range
0 to 5
Adjustable Pointer
No
Application
Pressure Detection
Primary Pressure Scale Color
Black
Lens Material
Polycarbonate
Process Connection Gender
Female
Accuracy Scale
Mid-Scale
Pointer Color
Black
Pressure Range Type
Pressure
Process Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Dial Face Material
Aluminum
Accuracy Grade
ASME B40.100 Grade B
Freeze Resistant Movement
No
Scale Type
Single
Primary Scale Units
psi
Standards
ANSI/ASME, CRN
Series
PLPT
Reads Head Pressure
No
Process Connection Type
NPT
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
150 Degrees F
Sensor Material
Bronze
Process Media Temperature - Maximum
150 Degrees F
Process Connection Location
Lower Back
Primary Scale Pressure Measurement - Maximum
5 psi
Primary Scale Color
Black
Process Media Temperature - Minimum
-40 Degrees F

Description

Low Pressure Gas Test Kit, Range 0 to 5 psi, Includes Gauge, Hand Pump and Hose, Mini Ball Valve, Test Block, Nipple and Fittings, Manufacturers Warranty Length 1 Year

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
