Shop WINTERS

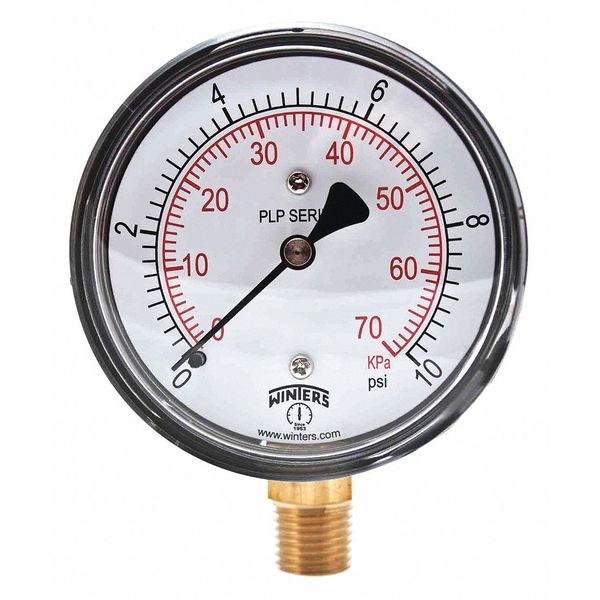

Low Pressure Gauge, 0 to 10 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material

  • Mfr # PLP306

  • Zoro # G3807889

product price:
$
42.59
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PLP306
Zoro #
G3807889
UPC #
628311203219
Country of Origin
Taiwan, Province of China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.450"
Nominal Dial Size
2 1/2 in
Case Depth
1.9 in
Manufacturer Warranty Length
5 yr
Case Diameter
2.625 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Low Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, Air Filters, Regulators and Respirators, Vacuum Applications
Gauge Case Material
Steel
Series
PLP
Lens Material
Polycarbonate
Primary Pressure Range
0 to 10
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Case Color
Black
Graduations
0.2 psi, 1 kPa
Characteristics
Suitable for Corrosive and Non Corrosive Gaseous Media, Natural Gas and Propane Pressure, Air Flow Indication, Leak Detection
For Use With
Air Compressors, Air Filters, Gas Burners, Respirators, Suction Regulators, Vacuum Ovens, Vacuum Pumps
Gauge Application
For Natural Gas & Other Gases
Calibration Certificate Included
No
Case Material
Steel
Socket Material
Brass
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Standards
CRN Registered
Process Connection Gender
Male
Removable Bezel
No
Cleaned for Oxygen Service
No
Scale Type
Dual
Includes Mounting Hardware
No
Pressure Range Type
Pressure
Accuracy Scale
Mid-Scale
Field Fillable
No
Accuracy Grade
ASME B40.100 Grade B
Pressure Gauge Type
Low Pressure Gauge
Pointer Material
Aluminum
Pointer Color
Black
Dial Face Material
Aluminum
Over-Pressure Limit
30% of Full Scale
Compatible Process Media
Gaseous
Freeze Resistant Movement
No
Sensor Material
Phosphor Bronze
Process Temperature Range
-40 Degrees to 150 Degrees F
Sensor Type
Diaphragm
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Gauge Case Liquid
None
Includes Vent Plug
No
Adjustable Pointer
No
Case Finish
Painted
Dry Dampening Feature
None
Dial Color
White
Vibration Resistance
None
Bezel Mounting Type
No Bezel
Pointer Characteristics
Aluminum, Anodized Black
Includes Calibration Certificate
No
Maximum Pressure
10 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
10 psi
NEMA Enclosure Rating
5
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
70 kPa
IP Rating
IP52
Case Liquid
None
Compatible with Brand
Universal

Description

Low Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 10, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Low Pressure Gauge, Liquid-Filled Case No

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
