  9. Low Pressure Gauge, 0 to 32 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

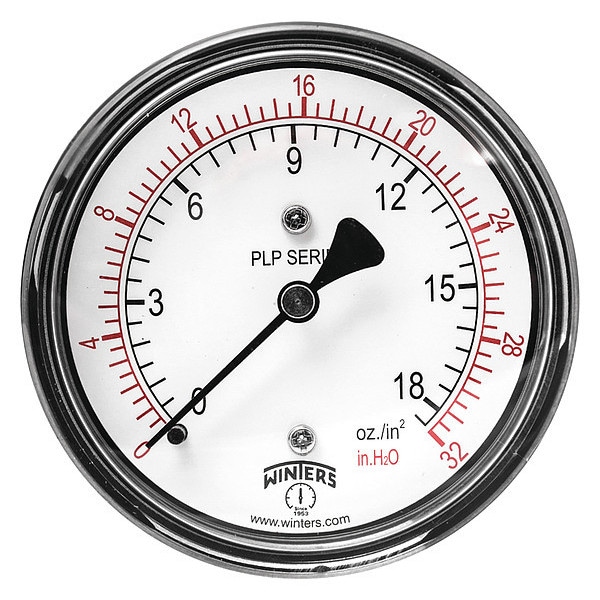

Winters Low Pressure Gauge, 0 to 32 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location PLP341 - main

Low Pressure Gauge, 0 to 32 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PLP341

  • Zoro # G1936451

product price: $44.15
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PLP341
Zoro #
G1936451
UPC #
628311203059
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Manufacturer Warranty Length
5 yr
Case Depth
1.9 in
Nominal Dial Size
2 1/2 in
Case Diameter
2.625 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Low Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Air Compressors, Air Filters, Regulators and Respirators, Vacuum Applications
Gauge Case Material
Steel
Series
PLP
Lens Material
Polycarbonate
Primary Pressure Range
0 to 32
Primary Scale Units
in wc
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Case Color
Black
Calibration Certificate Included
No
Gauge Special Options
Diaphragm
Gauge Primary Range Numbered Graduations
4/3
Gauge Primary Range Smallest Graduation
1/1
Gauge Secondary Range Values
0 to 70,000
Smallest Graduation
0.5 H2O/0.5 in-oz
For Use With
Air Compressors, Air Filters, Gas Burners, Respirators, Suction Regulators, Vacuum Ovens, Vacuum Pumps
Case Material
Steel
Socket Material
Brass
Gauge Application
For Natural Gas & Other Gases
Characteristics
Suitable for Corrosive and Non Corrosive Gaseous Media, Natural Gas and Propane Pressure, Air Flow Indication, Leak Detection
Standards
CRN Registered
Connection Type
MNPT
Adjustable Pointer
No
Sensor Material
Phosphor Bronze
Bezel Mounting Type
No Bezel
Accuracy Scale
Mid-Scale
Secondary Scale Units
oz/in2
Dial Color
White
Pointer Color
Black
Compatible Process Media
Gaseous
Cleaned for Oxygen Service
No
Primary Scale Numeric Increments
3, 4
Pointer Material
Aluminum
Pressure Range Type
Vacuum
Pressure Gauge Type
Low Pressure Gauge
Field Fillable
No
Includes Vent Plug
No
Sensor Type
Diaphragm
Over-Pressure Limit
30% of Full Scale
Removable Bezel
No
Includes Calibration Certificate
No
Process Connection Gender
Male
Primary Scale Minor Graduations
1
Gauge Case Liquid
None
Case Finish
Painted
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Scale Type
Dual
Freeze Resistant Movement
No
Process Temperature Range
-40 Degrees to 150 Degrees F
Pointer Characteristics
Aluminum, Anodized Black
Includes Mounting Hardware
No
Dry Dampening Feature
None
Secondary Pressure Range
0 to 19
Vibration Resistance
None
Dial Face Material
Aluminum
Accuracy Grade
ASME B40.100 Grade B
Operating Temperature Range
-40 Degrees to 150 Degrees F
IP Rating
IP52
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
19 oz/sq in
Primary Scale Pressure Measurement - Maximum
32 in wc
NEMA Enclosure Rating
5
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
150 Degrees F
Case Liquid
None
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Minimum
0 oz/sq in
Primary Scale Pressure Measurement - Minimum
0 in wc
Process Media Temperature - Maximum
150 Degrees F

Description

Low Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 32, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Low Pressure Gauge, Liquid-Filled Case No

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
