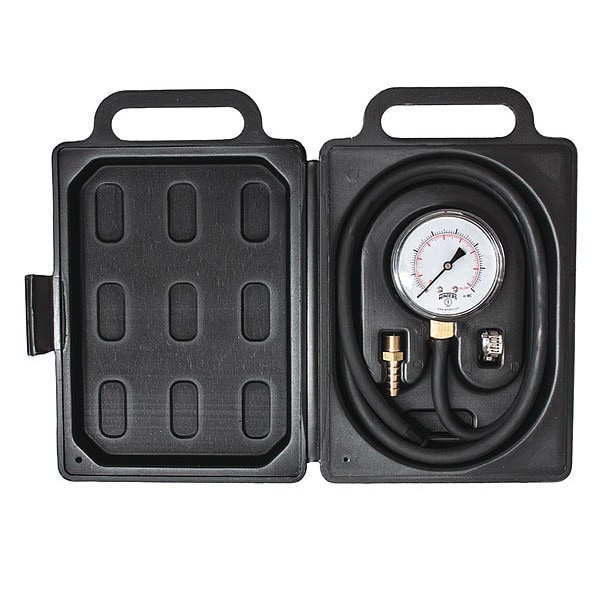

Winters Low Pressure Test Kit PLT100 - main

Low Pressure Test Kit

  • Mfr # PLT100

  • Zoro # G6630169

product price: $71.69
/ea

Key Features

Range
0 to 100 in wc, 58 oz/sq in
Pressure Range
0 to 100 in wc
Temperature Range (F)
-40 Degrees to 150 Degrees
Accuracy
+/-3-2-3%
Includes
Gauge, Gear Clamp, Hose Tube, Tube Nipple
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PLT100
Zoro #
G6630169
UPC #
628311203721
Country of Origin
China

Dimensions

Manufacturers Warranty Length
5 yr
Manufacturer Warranty Length
5 yr
Nominal Dial Size
2 1/2 in
Process Connection Size
1/4 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Low Pressure Gas Test Kit
Range
0 to 100 in wc, 58 oz/sq in
Pressure Range
0 to 100 in wc
Temperature Range (F)
-40 Degrees to 150 Degrees
Accuracy
+/-3-2-3%
Includes
Gauge, Gear Clamp, Hose Tube, Tube Nipple
Lens Material
Polycarbonate
Accuracy Scale
Mid-Scale
Secondary Pressure Scale Color
Red
Primary Pressure Range
0 to 100
Process Connection Type
Hose Barb
Series
PLT
Gauge Case Material
Steel
Scale Type
Dual
Pointer Material
Aluminum
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Sensor Material
Bronze
Freeze Resistant Movement
No
Dial Color
White
Socket Material
Brass
Pointer Color
Black
Secondary Pressure Range
0 to 58
Adjustable Pointer
No
Temperature Scale Units
Degrees C, Degrees F
Application
Gas Measurement
Process Connection Location
Bottom
Pressure Range Type
Pressure
Secondary Scale Units
oz/sq in
Compatible Process Media
Gas
Process Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Accuracy Grade
ASME B40.100 Grade B
Standards
ANSI/ASME, CRN
Primary Scale Units
in wc
Reads Head Pressure
No
Dial Face Material
Aluminum
Pressure Gauge Type
Gas Line Pressure Test Kit
Primary Pressure Scale Color
Black
Sensor Type
Diaphragm
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Color
Black
Process Media Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 in wc
Secondary Scale Color
Red
Primary Scale Pressure Measurement - Maximum
100 in wc
Process Media Temperature - Maximum
150 Degrees F
Process Connection Gender
Male
Secondary Scale Pressure Measurement - Minimum
0 oz/sq in
Operating Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Maximum
58 oz/sq in

Description

Low Pressure Test Kit, Range 0 to 100 In. H2O, 58 oz./sq. in, Temperature Range (F) -40 Degrees to 150 Degrees , Includes Carrying Case, Tube Nipple, Hose Tube, Clamp, Manufacturers Warranty Length 5 yr.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
