  9. Max Pointer Test Gauge, 2.5 in., 0-300psi

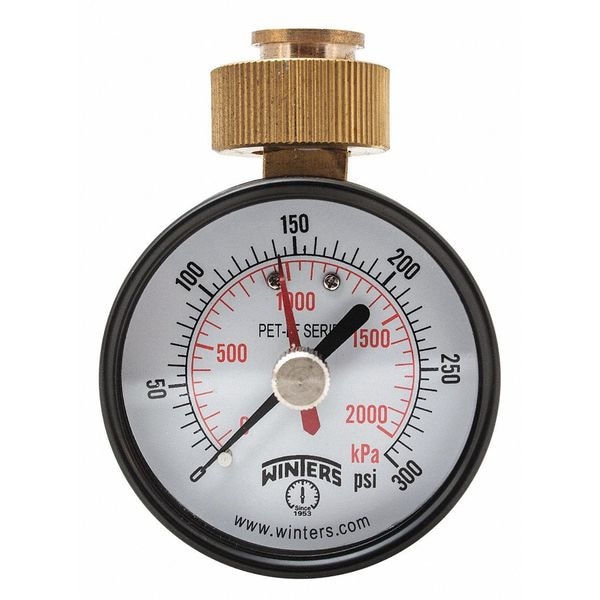

Winters Max Pointer Test Gauge, 2.5 in., 0-300psi PETM217LF - main

Max Pointer Test Gauge, 2.5 in., 0-300psi

  • Mfr # PETM217LF

  • Zoro # G6065193

product price: $17.19
/ea

Key Features

Standards
ASME, CRN
Manufacturers Warranty Length
5 yr
Calibration Certificate Included
No
Gauge Primary Range Values
0 to 300
Gauge Special Options
Maximum Reading Pointer
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PETM217LF
Zoro #
G6065193
UPC #
628311901030
Country of Origin
China

Dimensions

Manufacturers Warranty Length
5 yr
Connection Size
3/4 in Female Swivel Hose Adaptor
Gauge Nominal Dial Size
2 1/2 in
Gauge Connection Size
3/4 in
Case Depth
0.97 in
Manufacturer Warranty Length
5 yr
Process Connection Size
3/4 in
Nominal Dial Size
2 1/2 in
Case Diameter
2.447 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Lead-Free Pressure Gauge
Standards
ASME, CRN
Calibration Certificate Included
No
Gauge Primary Range Values
0 to 300
Gauge Special Options
Maximum Reading Pointer
Range
0 to 300 psi
Pressure and Vacuum Gauge Type
Pressure Gauge
Gauge Primary Range Units
psi
Gauge Panel Mountable
No
Basic Gauge Case Material
Steel
Gauge Connection Type
FGHT
Gauge Application
Home Water Pressure Testing
Gauge Connection Location
Top
Gauge Case Material
Steel
Liquid Filled
No
NSF Certified
Yes
Pressure Gauge Type
Test Pressure Gauge
Movement Material
Lead Free Brass
Process Connection Type
FGHT
Includes Calibration Certificate
No
Cleaned for Oxygen Service
No
Pressure Range Type
Pressure
Primary Pressure Range
0 to 300
IP/NEMA Rating
IP52
Accuracy Scale
Mid-Scale
Ambient Operating Temperature Range
32 Degrees to 150 Degrees F (0 Degrees to 65 Degrees C)
Vibration Resistance
None
Accuracy
+/-3-2-3%
Dial Face Material
Aluminum
Socket Material
Lead Free Brass
Lens Material
Acrylic
Field Fillable
No
Dry Dampening Feature
None
Dial Color
White
Series
PET-LF
Sensor Material
Phosphor Bronze
Hazardous Location Rating
Not Rated
Pointer Material
Aluminum
Process Connection Gender
Female
Process Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Units
psi
Gauge Case Liquid
None
Removable Bezel
No
Process Connection Location
Top
Sensor Type
Bourdon Tube
Accuracy Grade
ASME B40.100 Grade B
Liquid-Filled Case
No
Includes Vent Plug
No
Secondary Pressure Range
0 to 2,100
Scale Type
Dual
Application
Commercial, Residential
Includes Mounting Hardware
No
Compatible Process Media
Air, Natural Gas, Potable Water, Water
Secondary Scale Units
kPa
Freeze Resistant Movement
No
Case Finish
Painted
Case Color
Black
Pointer Color
Black
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
2,100 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
NEMA Enclosure Rating
5
Process Media Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
32 Degrees F
Primary Scale Pressure Measurement - Maximum
300 psi
Compatible with Brand
Universal
Case Material
Steel
IP Rating
IP52
Case Liquid
None

Description

Lead-Free Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type FGHT, Process Connection Gender Female, Lens Material Acrylic, Process Connection Size 3/4 in, Field Fillable No, Process Connection Location Top, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Test Pressure Gauge, Liquid-Filled Case No
