  5. Maximum Pointer Water Gauge, 0 to 160 psi, 2 1/2 in Dial, 3/4 in Swivel Hose, Top Location

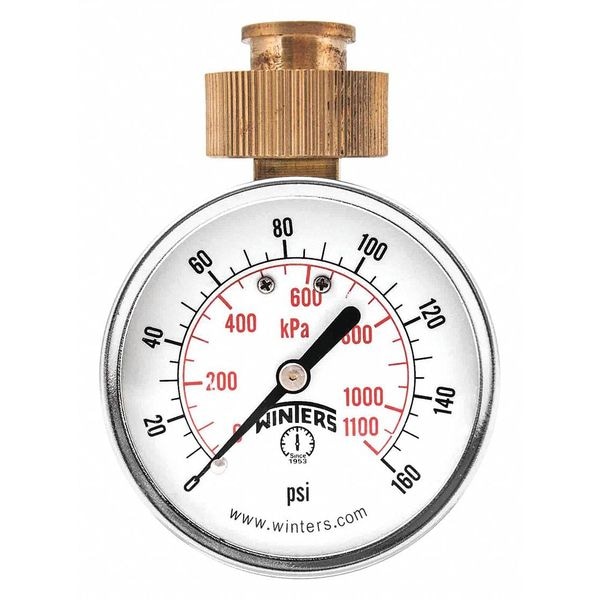

Winters Maximum Pointer Water Gauge, 0 to 160 psi, 2 1/2 in Dial, 3/4 in Swivel Hose, Top Location PETW213 - main
Shop WINTERS

Maximum Pointer Water Gauge, 0 to 160 psi, 2 1/2 in Dial, 3/4 in Swivel Hose, Top Location

  • Mfr # PETW213

  • Zoro # G4377784

product price:  $14.35
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Top
Process Connection Size
3/4 in
Process Connection Type
Swivel Hose
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PETW213
Zoro #
G4377784
UPC #
628311900507
Country of Origin
China

Dimensions

Process Connection Size
3/4 in
Dial Size (In.)
2 1/2 in
Connection Size
3/4 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
5 yr
Case Depth
1.12 in
Case Diameter
2.447 in
Gauge Case Diameter
2.447 in
Nominal Dial Diameter
2 1/2 in
Gauge Case Depth
1.12 in

Details

Item
Maximum Pointer Water Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Top
Process Connection Type
Swivel Hose
Application
Commercial, Residential
Gauge Case Material
Steel
Series
PET
Lens Material
Acrylic
Primary Pressure Range
0 to 160
Primary Scale Units
psi
Includes
Swivel Hose Adapter
Socket Material
Brass
Standards
ASME, CRN
Scale Type
Dual
Pointer Material
Aluminum
Ambient Operating Temperature Range
32 Degrees to 150 Degrees F (0 Degrees to 65 Degrees C)
Secondary Pressure Range
0 to 1,100
Dial Color
White
Pressure Gauge Type
Air Over Water Test Gauge
Secondary Scale Units
kPa
Sensor Type
Bourdon Tube
Case Finish
Painted
Freeze Resistant Movement
No
Process Connection Gender
Female
Accuracy Grade
ASME B40.100 Grade B
Compatible Process Media
Air, Gas, Water
Sensor Material
Phosphor Bronze
Process Temperature Range
-40 Degrees to 150 Degrees F
Pressure Range Type
Pressure
Dial Face Material
Aluminum
Accuracy Scale
Mid-Scale
Operating Temperature - Minimum
32 Degrees F
Primary Scale Pressure Measurement - Maximum
160 psi
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
Process Media Temperature - Maximum
150 Degrees F
Gauge Case Finish
Painted
Secondary Scale Pressure Measurement - Maximum
1,100 kPa

Description

Pressure Gauge, Range 0 to 160 psi, Includes Swivel Hose Adaptor, Manufacturers Warranty Length 5 yr.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
