  9. Maximum Pointer Water Gauge, 0 to 300 psi, 2 1/2 in Dial, 3/4 in NPT, Top Location

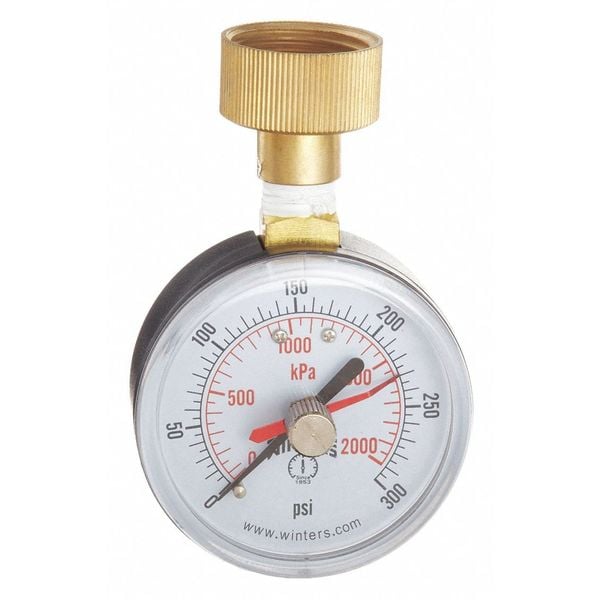

Winters Maximum Pointer Water Gauge, 0 to 300 psi, 2 1/2 in Dial, 3/4 in NPT, Top Location PETM217 - main

Maximum Pointer Water Gauge, 0 to 300 psi, 2 1/2 in Dial, 3/4 in NPT, Top Location

  • Mfr # PETM217

  • Zoro # G6624453

product price: $15.19
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Top
Process Connection Size
3/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PETM217
Zoro #
G6624453
UPC #
628311900538
Country of Origin
China

Dimensions

Process Connection Size
3/4 in
Dial Size (In.)
2 1/2 in
Length
4"
Case Diameter
2.447 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
5 yr
Case Depth
1.12 in
Gauge Case Diameter
2.447 in
Gauge Case Depth
1.12 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Maximum Pointer Water Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Top
Process Connection Type
NPT
Application
Commercial, Residential
Gauge Case Material
Steel
Series
PET
Lens Material
Acrylic
Primary Pressure Range
0 to 300
Primary Scale Units
psi
Liquid-Filled Case
No
Gauge Application
Residential and Commercial Pressure Testing of Natural Gas Air and Water Lines, Suitable for Non-Clogging and Non-Corroding Media
Includes
3/4 in Adapter, Swivel Hose Adapter
Socket Material
Brass
Characteristics
Adjustable Pointer
Smallest Graduation
5 psi
Gauge Secondary Range Values
0 to 2000
Case Color
Black
Gauge Primary Range Smallest Graduation
5
Graduations
5 psi
Gauge Primary Range Numbered Graduations
5
Calibration Certificate Included
No
Connection Type
MNPT
Standards
ASME, CRN
Scale Type
Dual
Sensor Type
Bourdon Tube
Pressure Range Type
Pressure
Pointer Material
Aluminum
Dial Face Material
Aluminum
Sensor Material
Bronze
Dial Color
White
Secondary Pressure Range
0 to 2,100
Process Temperature Range
-40 Degrees to 150 Degrees F
Compatible Process Media
Air, Gas, Water
Accuracy Scale
Mid-Scale
Case Finish
Painted
Freeze Resistant Movement
No
Ambient Operating Temperature Range
32 Degrees to 150 Degrees F (0 Degrees to 65 Degrees C)
Accuracy Grade
ASME B40.100 Grade B
Pressure Gauge Type
Air Over Water Test Gauge
Secondary Scale Units
kPa
Process Connection Gender
Female
Maximum Pressure
300
Operating Temperature Range
-40 Degrees to 150 Degrees F
Gauge Case Finish
Painted
Secondary Scale Pressure Measurement - Minimum
0 kPa
Process Media Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
300 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
32 Degrees F
Secondary Scale Pressure Measurement - Maximum
2,100 kPa

Description

Pressure Gauge, General Purpose, 2-1/2 In., Basic Gauge Case Material Metal, Basic Gauge Wetted Parts Brass / Bronze, 3/4 In., MNPT, Gauge Connection Location Top, 0 to 300, psi, Gauge Secondary Range Units kPa, Gauge Secondary Range Values 0 to 2000, +/-3-2-3 Percent, Gauge Panel Mountable No, Liquid Filled No, Gauge Primary Range Smallest Graduation 5, Gauge Case Material Steel, Gauge Primary Range Numbered Graduations 5, Gauge Case Color Black, Calibration Certificate Included No

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
