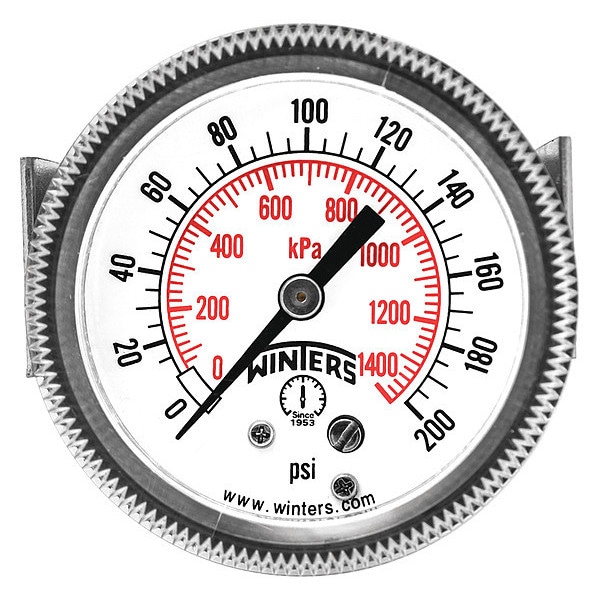

Winters Panel-Mount Pressure Gauge, 0 to 200 psi, 2 in Dial, 1/4 in NPT, Center Back Location P9U901410UC - main

Panel-Mount Pressure Gauge, 0 to 200 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # P9U901410UC

  • Zoro # G1615291

product price:  $9.69
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P9U901410UC
Zoro #
G1615291
UPC #
628311209266
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
For Panel Cut-Out Size
2.11 in
Case Diameter
2.271 in
Manufacturer Warranty Length
5 yr
Case Depth
1.145 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Compressors, Panels, Water Pressure Testing, Severe Ambient Conditions
Gauge Case Material
Steel
Series
P9U 90
Lens Material
Acrylic
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Gauge Secondary Range Values
0 to 1380
Case Material
Steel
Case Color
Black
Gauge Primary Range Smallest Graduation
10/100
Gauge Special Options
Zero Adjustment Screw
For Use With
Media Compatible with Bronze
Gauge Primary Range Numbered Graduations
50/200
Gauge Application
U-Clamp
Calibration Certificate Included
No
Socket Material
Brass
Smallest Graduation
2 psi/20 kPa
Connection Type
MNPT
Standards
ANSI/ASME, ASME, CRN
Secondary Scale Units
kPa
Scale Type
Dual
Dial Face Material
Aluminum
Dry Dampening Feature
Flutterless Pointer with Dampened Movement
Vibration Resistance
Dry Case Vibration-Dampened
Movement Material
Brass
Accuracy Scale
Mid-Scale
Field Fillable
No
Accuracy Grade
ASME B40.100 Grade A
Case Construction
Welded Joint
Pointer Color
Black
Pressure Range Type
Pressure
Pressure Gauge Type
Process Pressure Gauge
Case Finish
Painted
Non-Sparking
No
Cleaned for Oxygen Service
No
Includes Vent Plug
No
Sensor Type
Bourdon Tube
Includes Calibration Certificate
No
Mounting Hardware Included
Yes
Gauge Case Liquid
None
Process Connection Gender
Male
Sensor Material
Phosphor Bronze
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Removable Bezel
No
Freeze Resistant Movement
No
Over-Pressure Limit
25% of Full Scale
Secondary Pressure Range
0 to 1,400
Compatible Process Media
Non-Clogging, Non-Corroding
Pointer Material
Aluminum
Dial Color
White
Includes Mounting Hardware
Yes
Process Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature Range
-40 Degrees to 150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Maximum
200 psi
Operating Temperature - Maximum
150 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
None
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
1,400 kPa
NEMA Enclosure Rating
5
IP Rating
IP52
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Brand
Universal

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, For Panel Cut-Out Size 2.11 in, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 200, Dry Dampening Feature Flutterless Pointer with Dampened Movement, Vibration Resistance Dry Case Vibration-Dampened
