  5. Panel-Mount Pressure Gauge, 0 to 30 psi, 2 in Dial, 1/8 in NPT, Center Back Location

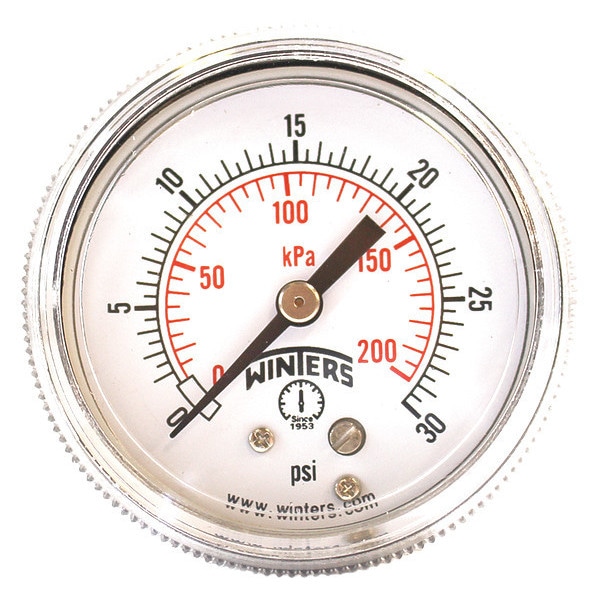

Winters Panel-Mount Pressure Gauge, 0 to 30 psi, 2 in Dial, 1/8 in NPT, Center Back Location P9U901402UC - main

Panel-Mount Pressure Gauge, 0 to 30 psi, 2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # P9U901402UC

  • Zoro # G1605491

product price:  $10.19
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P9U901402UC
Zoro #
G1605491
UPC #
628311209129
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
2 in
Case Diameter
2.271 in
Nominal Dial Size
2 in
Manufacturer Warranty Length
5 yr
Case Depth
1.145 in
For Panel Cut-Out Size
2.11 in
Nominal Dial Diameter
2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Compressors, Panels, Water Pressure Testing, Severe Ambient Conditions
Gauge Case Material
Steel
Series
P9U 90
Lens Material
Acrylic
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Socket Material
Brass
Calibration Certificate Included
No
Case Color
Black
Gauge Primary Range Smallest Graduation
1/10
Gauge Special Options
Zero Adjustment Screw
Standards
ANSI/ASME, ASME, CRN
Smallest Graduation
0.5 psi/5 kPa
Connection Type
MNPT
Gauge Application
U-Clamp
Case Material
Steel
For Use With
Media Compatible with Bronze
Gauge Primary Range Numbered Graduations
5/50
Gauge Secondary Range Values
0 to 200
Vibration Resistance
None
Cleaned for Oxygen Service
No
Movement Material
Brass
Sensor Type
Bourdon Tube
Case Finish
Painted
Case Construction
Welded Joint
Over-Pressure Limit
25% of Full Scale
Process Connection Gender
Male
Secondary Scale Units
kPa
Dry Dampening Feature
None
Field Fillable
No
Includes Vent Plug
No
Pointer Color
Black
Dial Face Material
Aluminum
Process Temperature Range
-40 Degrees to 150 Degrees F
Dial Color
White
Accuracy Grade
ASME B40.100 Grade A
Freeze Resistant Movement
No
Removable Bezel
No
Mounting Hardware Included
Yes
Pressure Gauge Type
Process Pressure Gauge
Sensor Material
Phosphor Bronze
Compatible Process Media
Non-Clogging, Non-Corroding
Pointer Material
Aluminum
Includes Mounting Hardware
Yes
Pressure Range Type
Pressure
Secondary Pressure Range
0 to 200
Gauge Case Liquid
None
Includes Calibration Certificate
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Scale Type
Dual
Non-Sparking
No
Accuracy Scale
Mid-Scale
Operating Temperature Range
-40 Degrees to 150 Degrees F
Secondary Scale Pressure Measurement - Maximum
200 kPa
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP52
Primary Scale Pressure Measurement - Maximum
30 psi
Process Media Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Case Liquid
None
Process Media Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
150 Degrees F
Compatible with Brand
Universal
NEMA Enclosure Rating
5

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/8 in, Field Fillable No, For Panel Cut-Out Size 2.11 in, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Process Pressure Gauge
