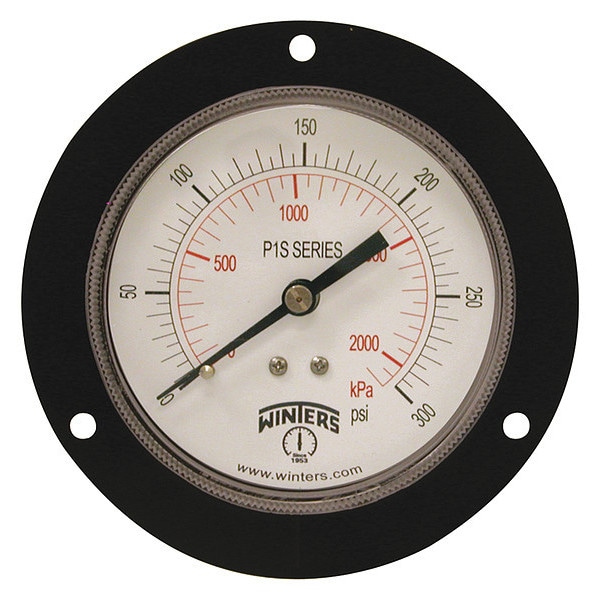

Winters Panel-Mount Pressure Gauge, 0 to 300 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location P1S567 - main

Panel-Mount Pressure Gauge, 0 to 300 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # P1S567

  • Zoro # G1936844

product price: $31.19
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
3 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P1S567
Zoro #
G1936844
UPC #
628311255287
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Bolt Circle Diameter
4.1 in
Case Depth
1.5 in
Flange Diameter
4.8 in
Case Diameter
4.03 in
Nominal Dial Size
3 1/2 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
3 1/2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Commercial, Refrigeration, HVAC/R, Plumbing
Gauge Case Material
Steel
Series
P1S 100
Lens Material
Glass
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Smallest Graduation
5 psi/50 kPa
Gauge Primary Range Numbered Graduations
50/500
For Use With
Media Compatible with Bronze
Gauge Special Options
Heavy Duty
Gauge Secondary Range Values
0 to 2100
Case Color
Black
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
10/100
Socket Material
Brass
Case Material
Steel
Standards
ANSI/ASME, CRN
Connection Type
MNPT
Secondary Scale Units
kPa
Field Fillable
No
Pressure Range Type
Pressure
Sensor Material
Phosphor Bronze
Removable Bezel
No
Over-Pressure Limit
25% of Full Scale
Accuracy Scale
Full Scale
Freeze Resistant Movement
No
Includes Vent Plug
No
Secondary Pressure Range
0 to 2,100
Mounting Hardware Included
Yes
Dry Dampening Feature
None
Pressure Gauge Type
Industrial Pressure Gauge
Process Temperature Range
-40 Degrees to 200 Degrees F
Movement Material
Brass
Case Construction
Welded Joint
Scale Type
Dual
Sensor Type
Bourdon Tube
Pointer Color
Black
Non-Sparking
No
Dial Face Material
Aluminum
Vibration Resistance
None
Process Connection Gender
Male
Panel Mount Characteristics
3 0.200 in Dia Holes on 4.10 in Dia Bolt Circle
Dial Color
White
Includes Mounting Hardware
Yes
Cleaned for Oxygen Service
No
Pointer Material
Aluminum
Accuracy Grade
ASME B40.100 Grade 1A
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Bezel Material
Brass
Case Finish
Polished
Gauge Case Liquid
None
Includes Calibration Certificate
No
Operating Temperature Range
-40 Degrees to 200 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
IP Rating
IP52
Case Liquid
None
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
5
Secondary Scale Pressure Measurement - Maximum
2,100 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
200 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Primary Scale Pressure Measurement - Maximum
300 psi
Compatible with Brand
Universal
Process Media Temperature - Minimum
-40 Degrees F

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
