  5. Panel-Mount Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/4 in NPT, Center Back Location

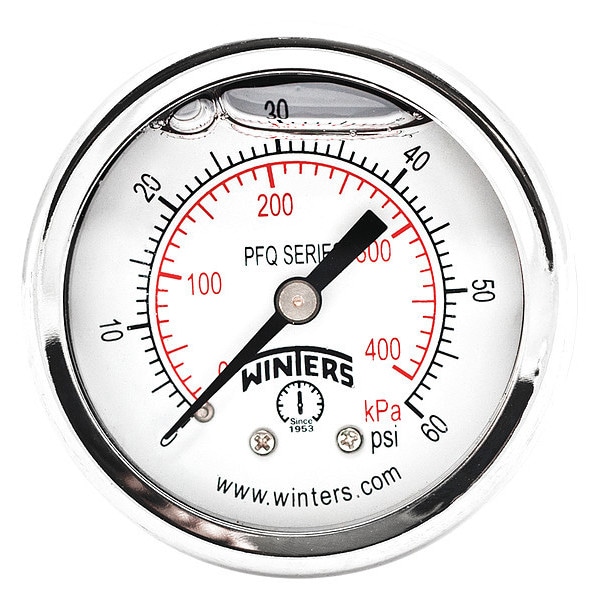

Winters Panel-Mount Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/4 in NPT, Center Back Location PFQ2488-DRY-2FF - main

Panel-Mount Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PFQ2488-DRY-2FF

  • Zoro # G1605290

product price:  $13.19
/ea

Key Features

Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PFQ2488-DRY-2FF
Zoro #
G1605290
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Case Diameter
2.035 in
Case Depth
0.92 in
Manufacturer Warranty Length
5 yr
Flange Diameter
2 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ
Lens Material
Polycarbonate
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
5/50
For Use With
Media Compatible with Bronze
Connection Type
MNPT
Case Material
304 Stainless Steel
Case Color
Metallic
Features
Ring Terminal
Standards
ASME, CRN
Socket Material
Brass
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 410
Gauge Primary Range Numbered Graduations
10/100
Smallest Graduation
1 psi/10 kPa
Gauge Special Options
Heavy Duty
Vibration Resistance
Field-Fillable
Sensor Type
Bourdon Tube
Over-Pressure Limit
25%
Dry Dampening Feature
None
Secondary Scale Units
kPa
Pressure Range Type
Pressure
Sensor Material
Phosphor Bronze
Case Construction
Welded Joint
Bezel Gasket Material
Silicone
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Scale Type
Dual
Pressure Gauge Type
Industrial Pressure Gauge
Dial Color
White
Cleaned for Oxygen Service
No
Bezel Mounting Type
Crimped
Removable Bezel
Yes
Secondary Pressure Range
0 to 410
Dial Face Material
Aluminum
Pointer Color
Black
Process Connection Gender
Male
Gauge Case Liquid
None
Bezel Material
304 Stainless Steel
Pointer Material
Aluminum
Non-Sparking
No
Freeze Resistant Movement
No
Accuracy Scale
Full Scale
Movement Material
Brass OT59
Compatible Process Media
Air, Water
Includes Vent Plug
Yes
Field Fillable
Yes
Process Temperature Range
-40 Degrees to 200 Degrees F
Includes Mounting Hardware
No
Includes Calibration Certificate
No
Operating Temperature Range
-40 Degrees to 200 Degrees F
IP Rating
IP65
Process Media Temperature - Maximum
200 Degrees F
Case Liquid
None
NEMA Enclosure Rating
4
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
60 psi
Secondary Scale Pressure Measurement - Maximum
410 kPa
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-2.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable Yes, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White
