  5. Panel-Mount Vacuum Gauge, 30 to 0 psi, 2 in Dial, 1/4 in NPT, Center Back Location

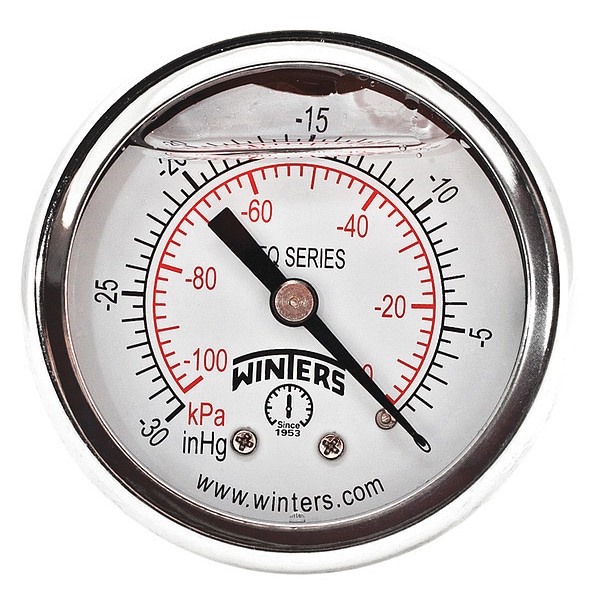

Winters Panel-Mount Vacuum Gauge, 30 to 0 psi, 2 in Dial, 1/4 in NPT, Center Back Location PFQ2478-DRY-2FF - main

Panel-Mount Vacuum Gauge, 30 to 0 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PFQ2478-DRY-2FF

  • Zoro # G1605169

product price:  $11.79
/ea

Key Features

Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PFQ2478-DRY-2FF
Zoro #
G1605169
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Case Diameter
2.035 in
Flange Diameter
2 in
Case Depth
0.92 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Panel-Mount Vacuum Gauge
Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0
Primary Scale Units
in Hg
IP/NEMA Rating
IP65
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
1/10
Socket Material
Brass OT58
Case Color
Metallic
Features
Ring Terminal
Connection Type
MNPT
Gauge Primary Range Numbered Graduations
5/20
For Use With
Media Compatible with Bronze
Gauge Secondary Range Values
-100 to 0
Standards
ASME, CRN
Smallest Graduation
0.5 in Hg/2 kPa
Calibration Certificate Included
No
Gauge Special Options
Heavy Duty
Case Material
304 Stainless Steel
Dial Face Material
Aluminum
Over-Pressure Limit
25%
Bezel Gasket Material
Silicone
Pressure Range Type
Vacuum
Field Fillable
Yes
Cleaned for Oxygen Service
No
Process Temperature Range
-40 Degrees to 200 Degrees F
Bezel Material
304 Stainless Steel
Dial Color
White
Dry Dampening Feature
None
Vibration Resistance
Field-Fillable
Removable Bezel
Yes
Secondary Scale Units
kPa
Process Connection Gender
Male
Includes Vent Plug
Yes
Includes Mounting Hardware
No
Pressure Gauge Type
Industrial Pressure Gauge
Scale Type
Dual
Pointer Color
Black
Pointer Material
Aluminum
Accuracy Scale
Full Scale
Secondary Pressure Range
-101 to 0
Gauge Case Liquid
None
Includes Calibration Certificate
No
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Compatible Process Media
Air, Water
Case Construction
Welded Joint
Bezel Mounting Type
Crimped
Freeze Resistant Movement
No
Sensor Type
Bourdon Tube
Non-Sparking
No
Sensor Material
Bronze
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Vacuum Measurement - Minimum
-101 kPa
Operating Temperature - Maximum
200 Degrees F
Secondary Scale Vacuum Measurement - Maximum
0 kPa
IP Rating
IP65
Case Liquid
None
Primary Scale Pressure Measurement - Maximum
-30 in Hg
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Maximum
-100 kPa
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Primary Scale Vacuum Measurement - Maximum
30 in Hg
NEMA Enclosure Rating
4
Process Media Temperature - Maximum
200 Degrees F
Primary Scale Pressure Measurement - Minimum
0 in Hg

Description

Panel-Mount Vacuum Gauge, Nominal Dial Size 2 in, Accuracy +/-2.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable Yes, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White
