Winters Pressure and Temperature Kit PTK1500. - main

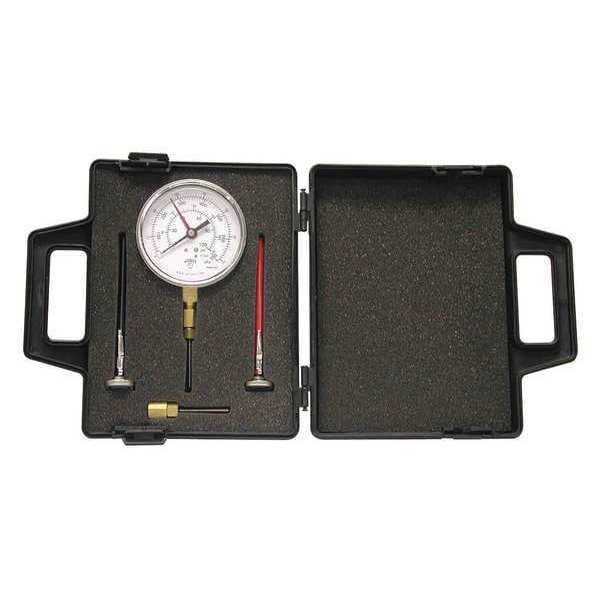

Pressure and Temperature Kit

  • Mfr # PTK1500.

  • Zoro # G5896077

product price: $288.99
/ea
Free Shipping & Returns

Key Features

Range
0 to 100 psi
Includes
(2) Bi-Metal Pocket Thermometers, Gauge Adapter
Manufacturers Warranty Length
5 yr
Temperature Range (F)
0 Degrees to 250 Degrees
Accuracy
+/-2-1-2%
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PTK1500.
Zoro #
G5896077
UPC #
628311902013
Country of Origin
China

Dimensions

Manufacturers Warranty Length
5 yr
Nominal Dial Size
3 1/2 in
Manufacturer Warranty Length
5 yr
Case Depth
1.32 in
Process Connection Size
1/4 in
Case Diameter
3.819 in
Gauge Case Depth
1.32 in
Gauge Case Diameter
3.819 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Pressure and Temperature Kit
Range
0 to 100 psi
Includes
(2) Bi-Metal Pocket Thermometers, Gauge Adapter
Temperature Range (F)
0 Degrees to 250 Degrees
Accuracy
+/-2-1-2%
Pressure Range
0 to 100 psi
Socket Material
Brass
Sensor Material
Bronze
Pointer Color
Red
Reads Head Pressure
No
Temperature Scale Units
Degrees C, Degrees F
Primary Pressure Range
0 to 100
Ambient Operating Temperature Range
-17 Degrees to 121 Degrees C, -40 Degrees to 160 Degrees F, -40 Degrees to 71 Degrees C, 0 Degrees to 250 Degrees F
Pointer Characteristics
Secondary Adjustable Set Pointer to Assist the Operator In Pressure Test Evaluations
Lens Material
Acrylic
Pointer Material
Aluminum
Accuracy Grade
ASME B40.100 Grade A
Adjustable Pointer
Adjustable Max Hand
Dial Color
White
Process Connection Location
Bottom
Series
PTK
Scale Type
Single
Freeze Resistant Movement
No
Compatible Process Media
Water
Process Connection Type
NPT
Pressure Range Type
Pressure
Pressure Gauge Type
Home Water Line Test Kit
Accuracy Scale
Mid-Scale
Sensor Type
Bourdon Tube
Application
Building Maintenance, Water Pressure Testing, Construction, Pneumatics, Prototype Equipment, Refrigeration, Pressure Detection
Process Connection Gender
Male
Process Temperature Range
-17 Degrees to 121 Degrees C, -40 Degrees to 160 Degrees F, -40 Degrees to 71 Degrees C, 0 Degrees to 250 Degrees F
Standards
ANSI/ASME
Primary Scale Units
psi
Gauge Case Material
Steel
Process Media Temperature - Maximum
250 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Minimum
-140 Degrees F
Primary Scale Pressure Measurement - Maximum
100 psi
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

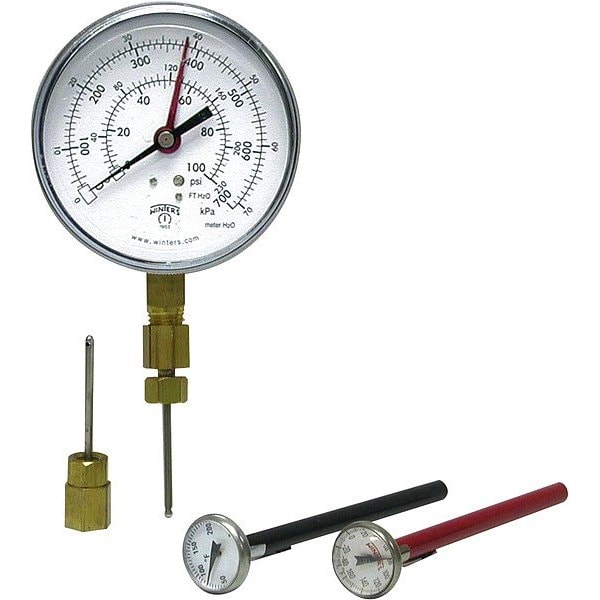

Pressure and Temperature Kit, Range 0 to 100 psi, Temperature Range (F) 0 Degrees to 250 Degrees , Includes Gauge, Gauge Adaptor, (2) Bi-Metal Pocket Thermometers, Carrying Case, Manufacturers Warranty Length 5 Years

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
