  5. Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1 1/2 in Tri-Clamp, Bottom Location

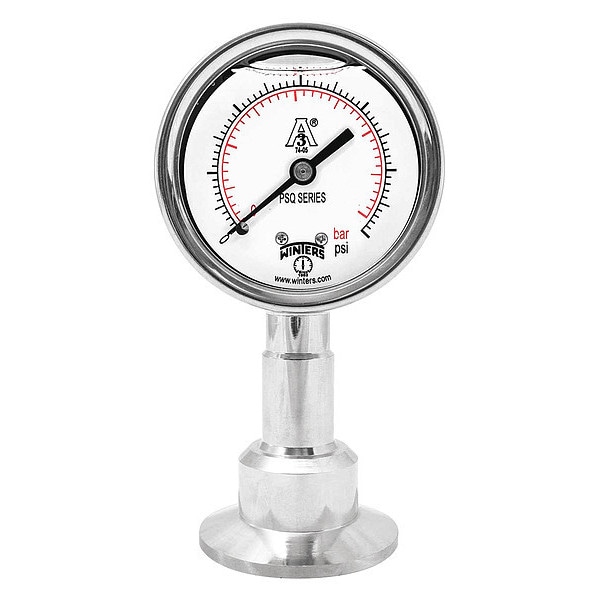

Winters Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1 1/2 in Tri-Clamp, Bottom Location PSQ15802 - main
Shop WINTERS

Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1 1/2 in Tri-Clamp, Bottom Location

  • Mfr # PSQ15802

  • Zoro # G1605595

product price:  $126.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1 1/2 in
Process Connection Type
Tri-Clamp
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSQ15802
Zoro #
G1605595
UPC #
628311263060
Country of Origin
China

Dimensions

Process Connection Size
1 1/2 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
5 yr
Case Depth
32.4 mm
Case Diameter
63.6 mm
Nominal Dial Diameter
2 1/2 in

Details

Item
Pressure Gauge
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
Tri-Clamp
Application
Beverage
Gauge Case Material
304 Stainless Steel
Series
PSQ
Lens Material
Polycarbonate
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
IP65, NEMA 4X
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Blowout Safety Back
No
Socket Material
316 Stainless Steel
Gauge Primary Range Numbered Graduations
5/50
Standards
3A 74-06 Certified, CRN Registered, RoHS
Gauge Primary Range Smallest Graduation
1/10
Case Material
304 Stainless Steel
For Use With
Media Compatible with 316L Stainless Steel
Connection Type
Triclamp
Gauge Secondary Range Values
0 to 2
Gauge Filled With
Glycerin
Smallest Graduation
0.5 psi/5 kPa
Case Color
Metallic
Calibration Certificate Included
No
Gauge Special Options
Heavy Duty
Features
3-A Dairy Approved Materials, Electro Polished Finish
Primary Scale Minor Graduations
1, 10
Secondary Pressure Range
0 to 2
Case Finish
Polished
Ambient Operating Temperature Range
40 Degrees to 150 Degrees F
Movement Material
304 Stainless Steel
Dial Face Material
Aluminum
Secondary Pressure Scale Color
Red
Pressure Range Type
Pressure
Bezel Material
304 Stainless Steel
Includes Calibration Certificate
No
Gauge Case Liquid
Glycerin
Pressure Gauge Type
Sanitary Pressure Gauge
Removable Bezel
No
Pointer Characteristics
Adjustable Micrometer Pointer
Field Fillable
Yes
Primary Scale Numeric Increments
5, 50
Sensor Type
Bourdon Tube
Sensor Material
316L Stainless Steel
Process Temperature Range
0 Degrees to 250 Degrees F
Dial Color
White
Adjustable Pointer
Adjustable Micrometer Pointer
Secondary Scale Units
bar
Dry Dampening Feature
None
Includes Vent Plug
No
Vibration Resistance
Liquid-Filled
Over-Pressure Limit
25%
Cleaned for Oxygen Service
No
Compatible Process Media
Air, Beverage, Dairy, Food, Gas, Liquid, Pasty or Powdery Media
Freeze Resistant Movement
No
Operating Temperature Range
40 Degrees to 150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Vacuum Measurement - Minimum
0 psi
Resistance Properties
Corrosion Resistant, Dust Resistant, Water Resistant
Primary Scale Vacuum Measurement - Maximum
30 psi
Secondary Scale Color
Red
Operating Temperature - Minimum
40 Degrees F
Process Media Temperature - Maximum
250 Degrees F
Process Media Temperature - Minimum
0 Degrees F
Primary Scale Pressure Measurement - Maximum
30 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
2 bar
Case Liquid
Glycerin
IP Rating
IP65
NEMA Enclosure Rating
4X
Operating Temperature - Maximum
150 Degrees F

Description

Pressure Gauge,2-1/2" Dial Size,Silver
