  11. Pressure Gauge, 0 to 300 psi, 1/4 in MNPT, Plastic, Black

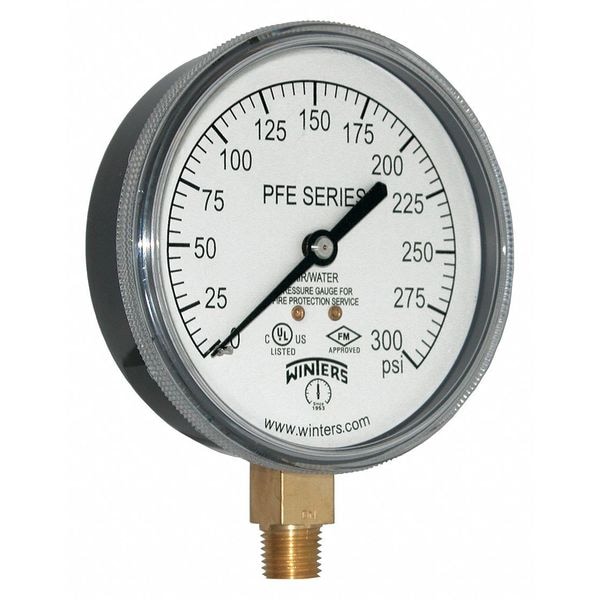

Winters Pressure Gauge, 0 to 300 psi, 1/4 in MNPT, Plastic, Black PFE3935R1 - main

Pressure Gauge, 0 to 300 psi, 1/4 in MNPT, Plastic, Black

  • Mfr # PFE3935R1

  • Zoro # G0533751

product price: $15.99
/ea

Key Features

Material
Plastic
Includes
Installation Date Sticker In Unit Box
Basic Gauge Socket Material
Brass
Connection Location
Bottom
Range
0 to 300 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PFE3935R1
Zoro #
G0533751
UPC #
628311257083
Country of Origin
China

Dimensions

Connection Size
1/4 in NPT
Dial Size (In.)
3-1/2
Diameter
3.874"
Manufacturers Warranty Length
5 yr
Gauge Connection Size
1/4 in
Gauge Nominal Dial Size
3 1/2 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
3 1/2 in
Case Depth
1.228 in
Process Connection Size
1/4 in
Case Diameter
3.681 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Fire Sprinkler System Pressure Gauge
Material
Plastic
Includes
Installation Date Sticker In Unit Box
Basic Gauge Socket Material
Brass
Connection Location
Bottom
Range
0 to 300 psi
Gauge Primary Range Units
psi
Gauge Lens Material
Polycarbonate
Basic Gauge Wetted Parts
Brass / Bronze
Accuracy
+/-3-2-3%
Gauge Sensor Material
Phosphor Bronze
Gauge Case Color
Black
Basic Gauge Sensor Material
Bronze
Gauge Primary Range Values
0 to 300
Basic Gauge Lens Material
Plastic
Gauge Socket Material
Brass
Gauge Connection Type
MNPT
Case Color
Black
Pressure and Vacuum Gauge Type
Pressure Gauge
Gauge Accuracy
+/-3.00%
Characteristics
Corrosion Resistant Case, CRN Registered, Suitable for Air/Water Media, UL and FM Approved, Working Pressure is max. 75% of Full Scale Value
Gauge Connection Location
Bottom
Series
PFE
Operating Temp. Range
-40 Degrees to 150 Degrees F
Liquid Filled
No
Gauge Panel Mountable
No
Max. Pressure (PSI)
300
Basic Gauge Case Material
Plastic
Gauge Application
Ideally Suited for Fire Sprinkler Systems and Fire Fighting Equipment
Gauge Case Material
Plastic
Color
Black
Calibration Certificate Included
No
Application
Fire Fighting Equipment, Fire Sprinkler Systems
Case Material
ABS
Socket Material
Brass
Standards
ASME B40.100, CRN Registered, Factory Mutual, UL-393 for USA and Canada
Accuracy Scale
Mid-Scale
Dial Color
White
Process Temperature Range
-40 Degrees to 150 Degrees F
Primary Pressure Range
0 to 300
Accuracy Grade
ASME B40.100 Grade B
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Freeze Resistant Movement
No
Pressure Range Type
Pressure
Scale Type
Single
Removable Bezel
No
Sensor Type
Bourdon Tube
Primary Scale Units
psi
Sensor Material
Bronze
Process Connection Location
Bottom
IP/NEMA Rating
IP52
Dial Face Material
Aluminum
Process Connection Type
NPT
Lens Material
Polycarbonate
Bezel Mounting Type
No Bezel
Movement Material
Brass
Pointer Material
Aluminum
Compatible Process Media
Air, Water
Pointer Color
Black
Case Construction
Plastic
Pressure Gauge Type
Fire Sprinkler System Gauge
Process Connection Gender
Male
Hazardous Location Rating
Not Rated
Reads Head Pressure
No
Field Fillable
No
IP Rating
IP52
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Minimum
-40 Degrees F
Includes Calibration Certificate
No
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
300 psi
Liquid-Filled Case
No
Process Media Temperature - Maximum
150 Degrees F
Case Liquid
None
Operating Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
5
Compatible with Brand
Universal

Description

Fire Sprinkler System Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 300, Dial Color White, Pressure Gauge Type Fire Sprinkler System Gauge, Liquid-Filled Case No, Compatible Process Media Air, Water
