  5. Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/8 in NPT Center Back Location, Steel Case Material

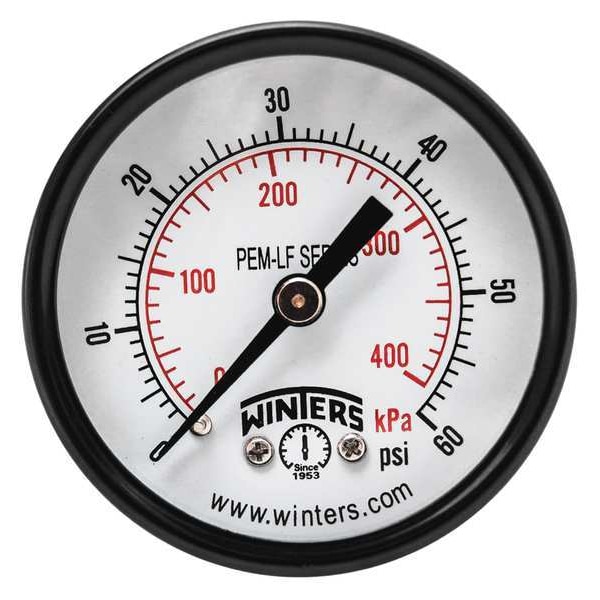

Winters Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/8 in NPT Center Back Location, Steel Case Material PEM1404LF - main

Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/8 in NPT Center Back Location, Steel Case Material

  • Mfr # PEM1404LF

  • Zoro # G9756887

product price:  $14.39
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in NPT
Dial Size (In.)
2 in
Gauge Case Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM1404LF
Zoro #
G9756887
UPC #
628311202199
Country of Origin
China

Dimensions

Process Connection Size
1/8 in NPT
Dial Size (In.)
2 in
Length
1.850"
Case Diameter
2.070 in
Nominal Dial Size
2 in
Manufacturer Warranty Length
5 yr

Details

Item
Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Polycarbonate
Primary Pressure Range
0 to 60
Primary Scale Units
psi
Liquid-Filled Case
No
Panel-Mountable
No
Calibration Certificate Included
No
Required Gauge Adapter
No
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Case Color
Black
Characteristics
Friction Bezel Ring
Pressure Range
0 to 60 psi/kPa
Case Material
Steel
Socket Material
Brass
NSF Certified
Yes
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Standards
CRN Registered
Maximum Pressure
60
Pressure Range Type
Pressure Gauge
Sensor Material
Bronze
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Lens Material Polycarbonate, Socket Material Brass
