  9. Process Pressure Gauge, 0 to 60 psi, 4 1/2 in Dial, 1/2 in NPT, Bottom Location

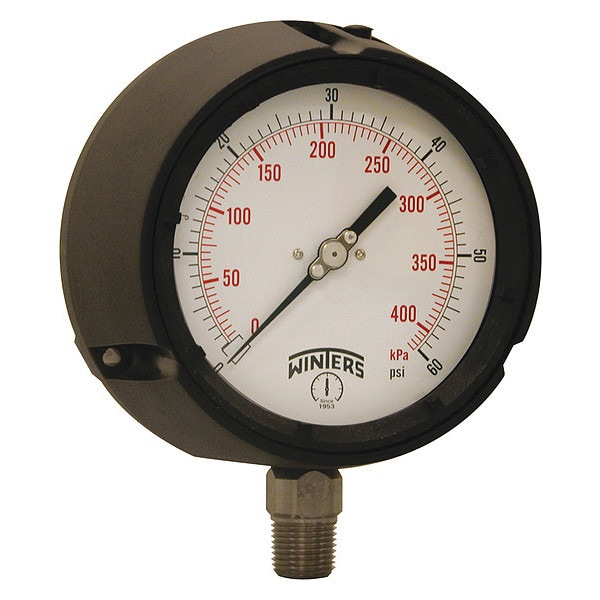

Winters Process Pressure Gauge, 0 to 60 psi, 4 1/2 in Dial, 1/2 in NPT, Bottom Location PPC5063-SG. - main

Process Pressure Gauge, 0 to 60 psi, 4 1/2 in Dial, 1/2 in NPT, Bottom Location

  • Mfr # PPC5063-SG.

  • Zoro # G1937440

product price: $93.79
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/2 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PPC5063-SG.
Zoro #
G1937440
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/2 in
Dial Size (In.)
4 1/2 in
Manufacturer Warranty Length
5 yr
Case Diameter
5.835 in
Case Depth
3.4 in
Nominal Dial Size
4 1/2 in
Bolt Circle Diameter
5.39 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Process Pressure Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Chemical Industries, Highly Corrosive, Oil and Gas Industry, Power Industries, Process Industries
Gauge Case Material
Phenolic
Series
PPC
Lens Material
Safety Glass
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
Yes
Smallest Graduation
0.5 psi/5 kPa
Features
Pressure Relief Back, Solid Front
Calibration Certificate Included
No
Case Color
Black
Gauge Special Options
Heavy Duty
For Use With
Media Compatible with 316L Stainless Steel
Gauge Secondary Range Values
0 to 410
Gauge Primary Range Numbered Graduations
10/50
Gauge Primary Range Smallest Graduation
1/10
Case Material
Phenolic
Socket Material
316L Stainless Steel
Connection Type
MNPT
Standards
ASME, CRN
Case Construction
Solid Wall
Bezel Material
Phenolic
Scale Type
Dual
Cleaned for Oxygen Service
No
Accuracy Scale
Full Scale
Bezel Gasket Material
Silicone
Primary Scale Minor Graduations
1, 10
Dry Dampening Feature
None
Field Fillable
Yes
Dial Face Material
Aluminum
Sensor Type
Bourdon Tube
Accuracy Grade
ASME B40.100 Grade 2A
Secondary Scale Units
kPa
Primary Scale Numeric Increments
10, 50
Over-Pressure Limit
25%
Pointer Color
Black
Vibration Resistance
Field-Fillable
Includes Mounting Hardware
No
Pressure Range Type
Pressure
Movement Material
304 Stainless Steel
Panel Mount Characteristics
3 0.240 in Dia Holes on 5.390 in Dia Bolt Circle
Gauge Case Liquid
None
Process Temperature Range
-40 Degrees to 250 Degrees F
Process Connection Gender
Male
Compatible Process Media
Chemicals, Highly Corrosive Media, Petroleum Products
Pressure Gauge Type
Process Pressure Gauge
Includes Calibration Certificate
No
Pointer Characteristics
Micrometer Adjustable
Removable Bezel
No
Dial Color
White
Sensor Material
316L Stainless Steel
Secondary Pressure Range
0 to 410
Freeze Resistant Movement
No
Ambient Operating Temperature Range
-40 Degrees to 120 Degrees C, -40 Degrees to 250 Degrees F
Pointer Material
Aluminum
Includes Vent Plug
No
Movement Type
Rotary
Non-Sparking
No
Operating Temperature Range
-40 Degrees to 250 Degrees F
Secondary Scale Pressure Measurement - Maximum
410 kPa
NEMA Enclosure Rating
4
Case Liquid
None
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Process Media Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
250 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Maximum
60 psi
Compatible with Brand
Universal
Operating Temperature - Maximum
120 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Process Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Phenolic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Safety Glass, Process Connection Size 1/2 in, Field Fillable Yes, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP65, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White, Pressure Gauge Type Process Pressure Gauge
