  5. Welding Regulator Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Bottom Location

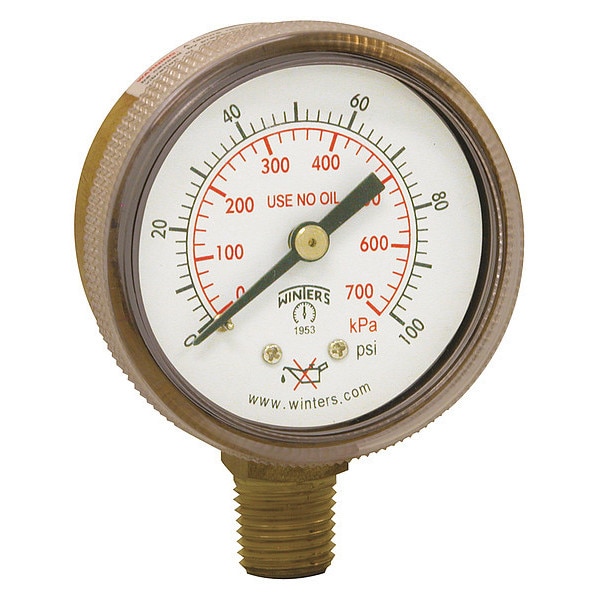

Winters Welding Regulator Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Bottom Location PWL2722 - main

Welding Regulator Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PWL2722

  • Zoro # G6756113

product price:  $14.49
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PWL2722
Zoro #
G6756113
UPC #
628311280104
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Case Diameter
2.25 in
Case Depth
1.14 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
2 in

Details

Item
Welding Regulator Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Beverage Dispensing Regulators, Down Stream Side of Regulator, High Pressure Side of Cylinder Gases, Other Pressurized Tanks, Welding Tank Regulators or Manifolds
Gauge Case Material
Brass
Series
PWL
Lens Material
Polycarbonate
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
For Use With
Media Compatible with Bronze
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 690
Case Material
Brass
Case Color
Gold
Socket Material
Brass
Connection Type
MNPT
Standards
CRN Registered
Accuracy Scale
Mid-Scale
Process Connection Gender
Male
Dial Color
White
Non-Sparking
Yes
Secondary Pressure Scale Color
Red
Sensor Material
Phosphor Bronze
Sensor Type
Bourdon Tube
Accuracy Grade
ASME B40.100 Grade B
Scale Type
Dual
Bezel Material
Polished Brass
Primary Pressure Scale Color
Black
Compatible Process Media
Bronze
Burst Pressure
4,000 psi
Pointer Color
Black
Pointer Material
Aluminum
Dial Face Material
Aluminum
Primary Scale Minor Graduations
10, 50
Pressure Range Type
Pressure
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Cleaned for Oxygen Service
No
Bezel Mounting Type
Threaded
Freeze Resistant Movement
No
Movement Material
Brass
Removable Bezel
Yes
Process Temperature Range
-40 Degrees to 150 Degrees F
Secondary Pressure Range
0 to 690
Pressure Gauge Type
Commercial Pressure Gauge
Secondary Scale Units
kPa
Case Finish
Polished
Includes Mounting Hardware
No
Adjustable Pointer
No
Primary Scale Numeric Increments
20, 100
Over-Pressure Limit
25% of Full Scale
Case Construction
Welded Joint
Operating Temperature Range
-40 Degrees to 150 Degrees F
Secondary Scale Pressure Measurement - Maximum
690 kPa
Includes Calibration Certificate
No
Compatible with Brand
Universal
Case Liquid
None
Field Fillable
No
Primary Scale Color
Black
Operating Temperature - Maximum
150 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
100 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
IP Rating
IP52
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Minimum
-40 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
5

Description

Welding Regulator Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Brass, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Gold, IP/NEMA Rating IP52, Primary Pressure Range 0 to 100, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge, Liquid-Filled Case No, Panel-Mountable No, Compatible Process Media Bronze

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
