  9. Welding Regulator Pressure Gauge, 0 to 30 psi, 2 in Dial, 1/4 in NPT, Bottom Location

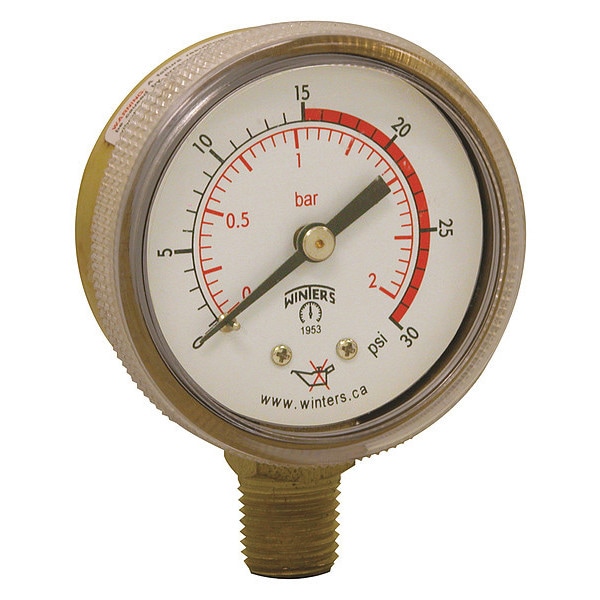

Winters Welding Regulator Pressure Gauge, 0 to 30 psi, 2 in Dial, 1/4 in NPT, Bottom Location PWL2720 - main

Welding Regulator Pressure Gauge, 0 to 30 psi, 2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PWL2720

  • Zoro # G1936619

product price: $12.99
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PWL2720
Zoro #
G1936619
UPC #
628311280081
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Case Diameter
2.25 in
Case Depth
1.14 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
2 in

Details

Item
Welding Regulator Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Beverage Dispensing Regulators, Down Stream Side of Regulator, High Pressure Side of Cylinder Gases, Other Pressurized Tanks, Welding Tank Regulators or Manifolds
Gauge Case Material
Brass
Series
PWL
Lens Material
Polycarbonate
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Features
Non Sparking Materials
Gauge Primary Range Numbered Graduations
5/50
For Use With
Media Compatible with Bronze
Smallest Graduation
0.5 psi/5 kPa
Gauge Primary Range Smallest Graduation
1/10
Calibration Certificate Included
No
Case Color
Gold
Gauge Secondary Range Values
0 to 200
Case Material
Brass
Socket Material
Brass
Standards
CRN Registered
Connection Type
MNPT
Accuracy Grade
ASME B40.100 Grade B
Adjustable Pointer
No
Sensor Type
Bourdon Tube
Bezel Mounting Type
Threaded
Secondary Pressure Scale Color
Red
Primary Pressure Scale Color
Black
Dial Face Material
Aluminum
Case Construction
Welded Joint
Cleaned for Oxygen Service
No
Pressure Range Type
Pressure
Primary Scale Numeric Increments
5, 50
Pressure Gauge Type
Commercial Pressure Gauge
Dial Color
White
Process Temperature Range
-40 Degrees to 150 Degrees F
Accuracy Scale
Mid-Scale
Case Finish
Polished
Over-Pressure Limit
25% of Full Scale
Includes Mounting Hardware
No
Movement Material
Brass
Bezel Material
Polished Brass
Scale Type
Dual
Sensor Material
Phosphor Bronze
Burst Pressure
4,000 psi
Compatible Process Media
Bronze
Removable Bezel
Yes
Secondary Pressure Range
0 to 200
Pointer Color
Black
Primary Scale Minor Graduations
1, 10
Freeze Resistant Movement
No
Non-Sparking
Yes
Secondary Scale Units
kPa
Process Connection Gender
Male
Pointer Material
Aluminum
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
NEMA Enclosure Rating
5
Primary Scale Color
Black
Process Media Temperature - Maximum
150 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP52
Field Fillable
No
Case Liquid
None
Primary Scale Pressure Measurement - Maximum
30 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
200 kPa
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Includes Calibration Certificate
No
Compatible with Brand
Universal

Description

Welding Regulator Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Brass, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Gold, IP/NEMA Rating IP52, Primary Pressure Range 0 to 30, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge, Liquid-Filled Case No, Panel-Mountable No, Compatible Process Media Bronze
