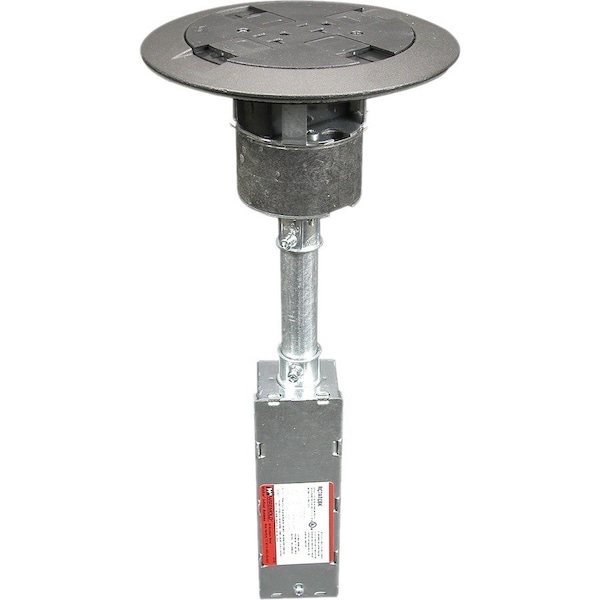

Poke-Through Box, 24.5 cu in, Wiring Box Type, Steel

Name: Poke-Through Box, 24.5 cu in, Wiring Box Type, Steel
Brand: Wiremold
SKU: G0574747
Price: 414.99 USD
Availability: InStock

$414.99

/ea

Free Shipping & Returns

Capacity

24.5 cu in

Box Type

Wiring

Material

Steel

Overall Width

7 in

Overall Depth

16 in

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Poke-Through Box
Capacity: 24.5 cu in
Box Type: Wiring
Material: Steel
Color: Black
Features: Prewired 20A duplex receptacle can be wired as standard duplex or isolated ground. Flanges available painted in gray (GY), black (BK), ivory (VY). Flanges also available in plated brushed brass (BS) and brushed aluminum (AL). Slide covers match the painted flange colors, gray, black, ivory. Aluminum and brass flanges shipped with black slide cover. Brass flange also available with nonmetallic brass colored slide holder (AB). Aluminum flange also available with nonmetallic aluminum color slide holder (AA). Includes Wiremold Open System unloaded inserts. NOTE: Includes two Cat 6 TechChoice discrete keystone connectors, two Ortronics TracJack adapters, and two Wiremold Open System adapters. RC7 Series Poke-Thru Devices require a 3 1/16inch (78mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8inch minimum.
Standard: cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT. cULus Listed Nonmetallic Outlet Boxes & Fittings Classified for Fire Resistance: File R8209 Guide CEYY. Meets Article 300.21, 300.22[C] &314 of NEC.
Number of Knockouts: 2
Special Features: TopGuard Protection, Dual Service, slide door activation
Product Environmental Profile: Yes
Number of Inlets: 2
