Shop WOODHEAD

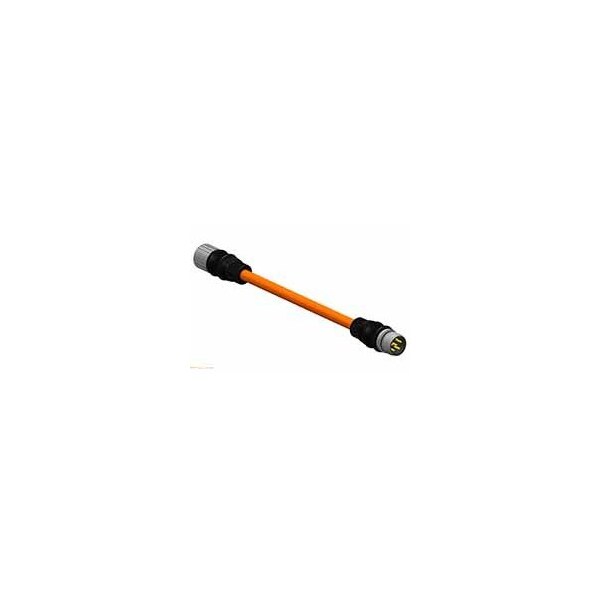

Cable Assembly

  • Mfr # KKP8S30W03M030

  • Zoro # G405967080

product price:
$
444.99
/ea
Sold in multiples of 5 for $2,224.95
Free Shipping & Returns

Key Features

Color
Orange
Min. Single Wire Size
19 AWG
Max. Single Wire Size
16 AWG
Series
120480
Max. Voltage
600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
KKP8S30W03M030
Zoro #
G405967080
UPC #
-
Country of Origin
Mexico

Dimensions

Min. Single Wire Size
19 AWG
Max. Single Wire Size
16 AWG
Length
9.84 ft
Cable Diameter
12.10mm (.480")
Cable Length
3.0m (9.84')
Wire Size (AWG)
16, 19

Details

Color
Orange
Series
120480
Max. Voltage
600V
IP Rating
IP67
Material
Thermoplastic Polyurethane
Connector Type
Female-Male
Current Rating
12 A; 18 A
Type
Double Ended
Max. Temp.
85°C
Contact Finish
Gold Plated
Product Name
Brad M23
Material - Coupling Nut
Brass
Connector End A
M23
LED Indicator
No
Voltage - Maximum
300V / 600V
Temperature Range - Operating
-25° to +85°C
Material - Plating Mating
Gold
Poles
8
Material - Connector Body
TPU
Material - Contact
Copper Alloy
Keyway
Multiple
Connector End B
M23
Orientation
Straight to Straight
Wire/Cable Type
WSOR
Coupling Style
Threaded
Current - Maximum per Contact
12.0A, 18.0A
Material - Cable Jacket
TPU
