  11. Cse M12 4P Ac Fe Ra Wsor 1M Se Shld Bk

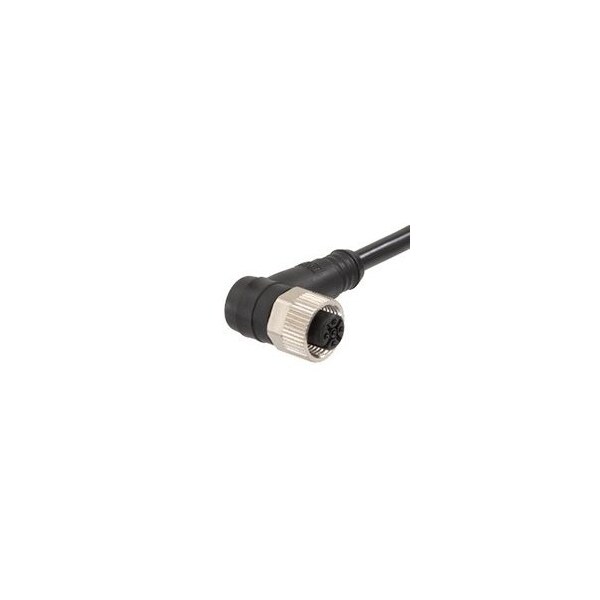

Woodhead Cse M12 4P Ac Fe Ra Wsor 1M Se Shld Bk 804S01BS1M010 - main

Cse M12 4P Ac Fe Ra Wsor 1M Se Shld Bk

  • Mfr # 804S01BS1M010

  • Zoro # G005983039

product price: $41.55
/ea
Sold in multiples of 2 for $83.10

Key Features

Cable Length
1 m
IP Rating
IP67
Keyway
Single
Type
Single Ended
Wire/Cable Type
WSOR
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
804S01BS1M010
Zoro #
G005983039
UPC #
-
Country of Origin
Poland

Dimensions

Cable Length
1 m
Cable Diameter
5.70mm (.224")
Wire Size
22 AWG

Details

IP Rating
IP67
Keyway
Single
Type
Single Ended
Wire/Cable Type
WSOR
Orientation
90° to Pigtail
Coupling Style
Knurled Hexnut, Threaded
Material - Cable Jacket
TPU
Material - Coupling Nut
Nickel-plated Brass
Temperature Range - Operating
-25°C to +85°C
Voltage - Maximum
250V
Material - Connector Body
TPU
UL
E152210
Poles
4
LED Indicator
No
Current - Maximum per Contact
4.0A
Gender
Female-Pigtail
Material - Plating Mating
Gold
Series
120069
Connector End B
Pigtail
Connector End A
Micro-Change (M12)
Material - O-Ring
Fluoro-elastomer
Material - Contact
Brass
Product Name
Micro-Change (M12)
Product Type
M12
Cable Jacket Material
TPU
Cable Jacket Color
Black
Item
Cordset
