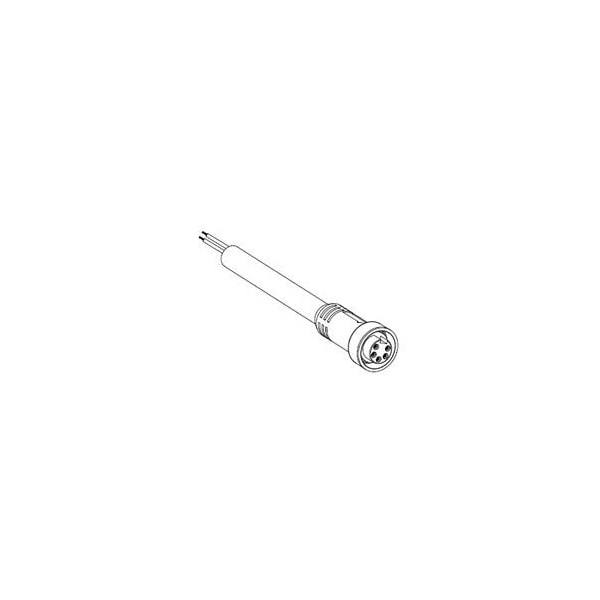

Woodhead Mc 5P Fp 9 16/5 Pvc 105000A01F090 - main

Mc 5P Fp 9 16/5 Pvc

  • Mfr # 105000A01F090

  • Zoro # G605788508

product price:  $73.59
/ea
Sold in multiples of 2 for $147.18

Key Features

Wire Size
16 AWG
Cable Length
2.74 m
Insulation Material
PVC
Cable Jacket Material
PVC
Maximum Voltage
600 V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
105000A01F090
Zoro #
G605788508
UPC #
-
Country of Origin
United States

Dimensions

Wire Size
16 AWG
Cable Length
2.74 m
Length
9 ft
Cable Diameter
12.70mm (.500")

Details

Item
Mini Change Receptacle
Insulation Material
PVC
Cable Jacket Material
PVC
Maximum Voltage
600 V
IP Rating
IP67
Max. Amps
8 A
Maximum Operating Temperature
105 Degrees C
Color
Yellow
Material
PVC
Standards
CSA Certified; UL E152210
Connector Type
Female-Pigtail
Series
130006
Contact Finish
Gold Plated
Max. Voltage
600V
Type
Single Ended
Material - Plating Mating
Gold
CSA
LR6837
Material - Coupling Nut
Black Epoxy Coated Zinc
Connector End B
Pigtail
Keyway
Single
Coupling Style
Threaded
LED Indicator
No
Wire/Cable Type
STOOW
Connector End A
Mini-Change
UL
E152210
Material - Contact
Copper Alloy
Current - Maximum per Contact
8.0A
Orientation
Straight to Pigtail
Poles
5
Temperature Range - Operating
-20° to +105°C
Product Name
Mini-Change
