  11. Mic 3P Fp 5M 22/3 Tpe

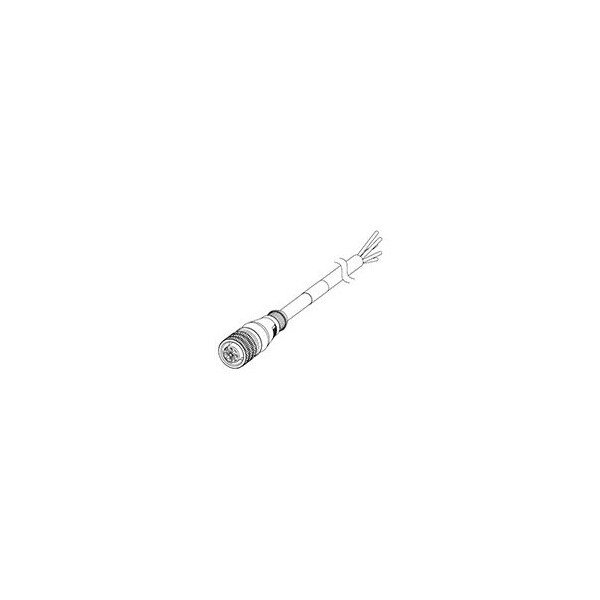

Woodhead Mic 3P Fp 5M 22/3 Tpe 803000K05M050 - main

Mic 3P Fp 5M 22/3 Tpe

  • Mfr # 803000K05M050

  • Zoro # G605903024

product price: $50.49
/ea
Sold in multiples of 12 for $605.88

Key Features

Cable Length
5 m
IP Rating
IP67
Type
Single Ended
Keyway
Single
Gender
Female-Pigtail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
803000K05M050
Zoro #
G605903024
UPC #
-
Country of Origin
Unknown

Dimensions

Cable Length
5 m
Cable Diameter
5.00mm (.197")
Wire Size
22 AWG

Details

IP Rating
IP67
Type
Single Ended
Keyway
Single
Gender
Female-Pigtail
LED Indicator
No
Temperature Range - Operating
-25°C to +85°C
Material - O-Ring
Fluoro-elastomer
Coupling Style
Threaded
Material - Connector Body
TPU
CSA
LR6837
Voltage - Maximum
250V AC/DC
Orientation
Straight to Pigtail
Material - Coupling Nut
Nickel-plated Brass
Current - Maximum per Contact
4.0A
Material - Plating Mating
Gold
UL
E152210
Poles
3
Wire/Cable Type
PLTC-ER
Series
120065
Connector End B
Pigtail
Material - Contact
Brass
Connector End A
Micro-Change (M12)
Product Name
Micro-Change (M12)
Cable Jacket Material
TPE
Cable Jacket Color
Yellow
Item
Cordset
