  11. Mic 3P Mr 6Ft. No 22 Pvc Auto
This item is Discontinued.

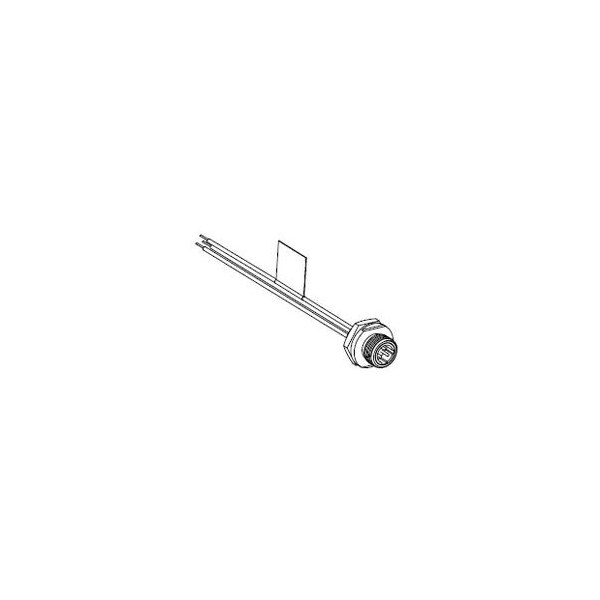

Woodhead Mic 3P Mr 6Ft. No 22 Pvc Auto 1200740081

Mic 3P Mr 6Ft. No 22 Pvc Auto (Discontinued)

  • Mfr # 1200740081
  • Zoro # G205787123
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200740081
Zoro #
G205787123
UPC #
-
Country of Origin
Mexico

Dimensions

Length
1.83m
Mounting Thread Size
1/4" - 18 NPT
Wire Size (AWG)
22

Details

Item
Micro-Change (1/2" - 20 UNF)
Maximum Voltage
250 V
IP Rating
IP67
Minimum Operating Temperature
-20 Degrees C
Maximum Operating Temperature
80 Degrees C
Color
Gray
Series
120074
Type
Single Ended (pigtail)
Standards
UL E152210
Gender
Male
Coupling Type
External Thread
Wire/Cable Type
Leads, UL 1061
Orientation
Straight
UL
E152210
Panel Mount
Front
Current - Maximum per Contact
4.0A
Temperature Range - Operating
-20° to +80°C
CSA
LR6837
Voltage - Maximum
250V AC/DC
Poles
3
NEMA Rating
NEMA 6
Keyway
Dual
Product Name
Micro-Change (1/2" - 20 UNF)
Material - Component
Gray Annodized Aluminum
