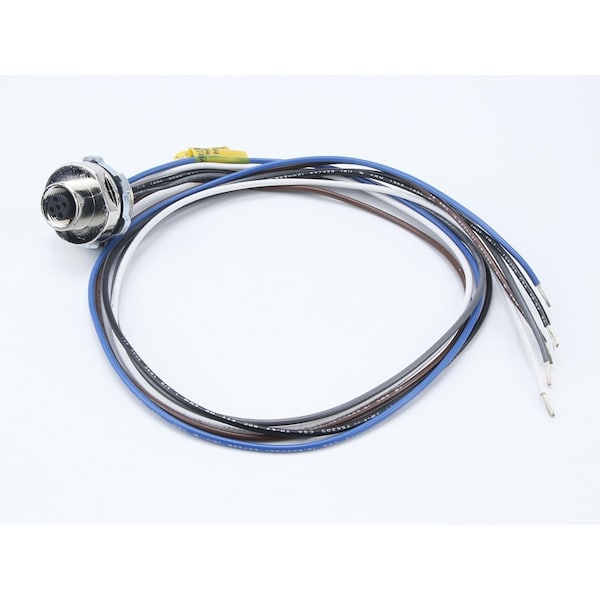

Mic 5P F/Fr .5M 1/2Npt No 18 Pvc
- Mfr # 8R5000A16M005
- Zoro # G905927461
product price:Â
$
55.85
/ea
Sold in multiples of 2 for
$111.70
Key Features
Type
Single Ended (pigtail)
Poles
5
Mounting Thread Size
1/2" - 14 NPT
Voltage - Maximum
250V AC/DC
Wire Size (AWG)
18
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8R5000A16M005
- Zoro #
- G905927461
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Mounting Thread Size
- 1/2" - 14 NPT
- Wire Size (AWG)
- 18
- Length
- 0.50m
Details
- Type
- Single Ended (pigtail)
- Poles
- 5
- Voltage - Maximum
- 250V AC/DC
- Orientation
- Straight
- Temperature Range - Operating
- -20° to +105°C
- IP Rating
- IP67
- Panel Mount
- Front
- Material - Component
- Nickel-plated Zinc Die-Cast
- Coupling Type
- Internal Thread
- Wire/Cable Type
- UL 1569
- Product Name
- Micro-Change (M12)
- Current - Maximum per Contact
- 4.0A
- Gender
- Female
- NEMA Rating
- NEMA 6
- Series
- 120070
- Keyway
- Single
