This item is Discontinued.

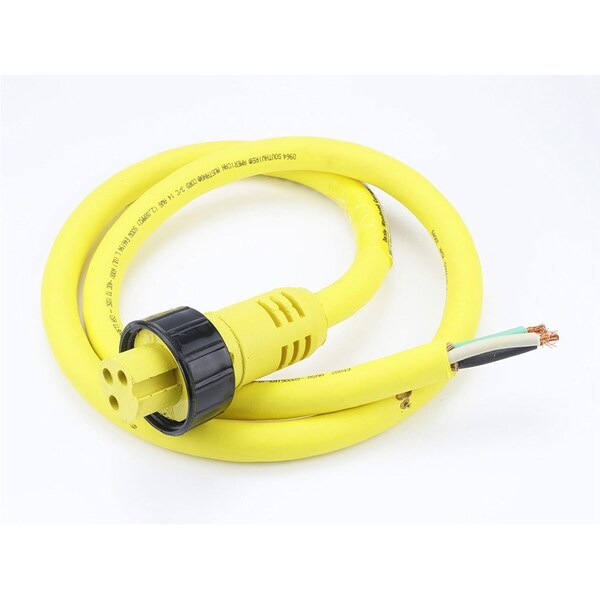

Woodhead QC 3P FP 6 FT. 12/3 SO CORD 32350

QC 3P FP 6 FT. 12/3 SO CORD (Discontinued)

  • Mfr # 32350
  • Zoro # G0380792
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
32350
Zoro #
G0380792
UPC #
78678832350
Country of Origin
Mexico

Dimensions

Cable Length
1.83m (6.0')
Cable Diameter
16.63mm (.655")
Wire Size (AWG)
12

Details

IP Rating
IP67
Type
Single Ended
Keyway
Single
Orientation
Straight to Pigtail
LED Indicator
No
Material - Connector Body
TPE
Poles
3
CSA
LR6837
Material - Contact
Copper Alloy
Color - Cable Jacket
Yellow
Coupling Style
Threaded
Voltage - Maximum
600V
Gender
Female-Pigtail
UL
E46237
Wire/Cable Type
SOW
Connector End A
Quick-Change
Temperature Range - Operating
-20° to +105°C
Connector End B
Pigtail
Current - Maximum per Contact
25.0A
Material - Cable Jacket
CPE
Product Name
Quick-Change
Series
130000
Material - Coupling Nut
Nylon

Description

QC 3P FP 6 ft. 12/3 SO CORD
