  11. Sensor Cables / Actuator Cables Mc 4P Fp 6 16/4 Soo
This item is Discontinued.

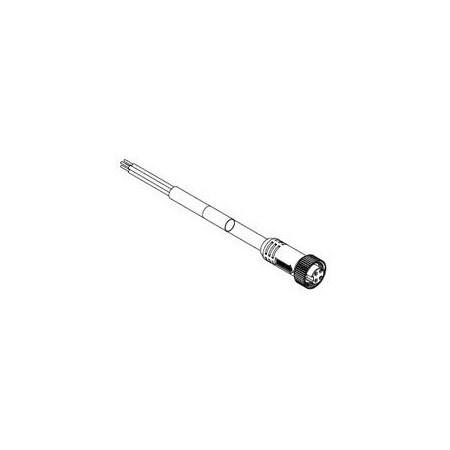

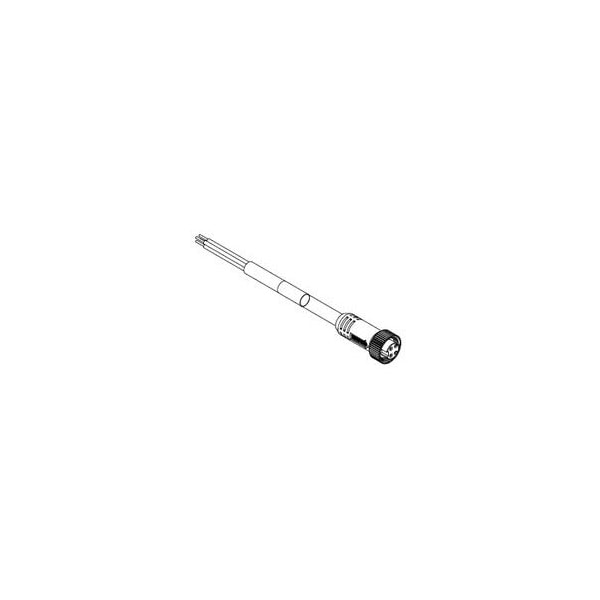

Woodhead Sensor Cables / Actuator Cables Mc 4P Fp 6 16/4 Soo 1300060868

Sensor Cables / Actuator Cables Mc 4P Fp 6 16/4 Soo (Discontinued)

  • Mfr # 1300060868
  • Zoro # G305786989
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1300060868
Zoro #
G305786989
UPC #
-
Country of Origin
Mexico

Dimensions

Cable Length
1.83 m
Length
6 ft
Cable Diameter
11.43mm (.450")
Wire Size
16 AWG

Details

Item
Cordset
Insulation Material
PVC
Maximum Voltage
600 V
IP Rating
IP67
Minimum Operating Temperature
-20 Degrees
Maximum Operating Temperature
90 Degrees C
Color
Yellow
Material
PVC
Type
Single Ended
Max. Voltage
600V
Standards
CSA Certified
Connector Type
Female-Pigtail
Series
130006
Contact Finish
Gold Plated
Material - Contact
Copper Alloy
Wire/Cable Type
SOO
Poles
4
Temperature Range - Operating
-20° to +90°C
Product Name
Mini-Change
Material - Coupling Nut
Black Epoxy Coated Zinc
Current - Maximum per Contact
10.0A
Coupling Style
Threaded
LED Indicator
No
Orientation
Straight to Pigtail
Connector End B
Pigtail
Connector End A
Mini-Change
CSA
LR6837
Keyway
Single
Material - Plating Mating
Gold
Max. Amps
10 A
Cable Jacket Material
Rubber
