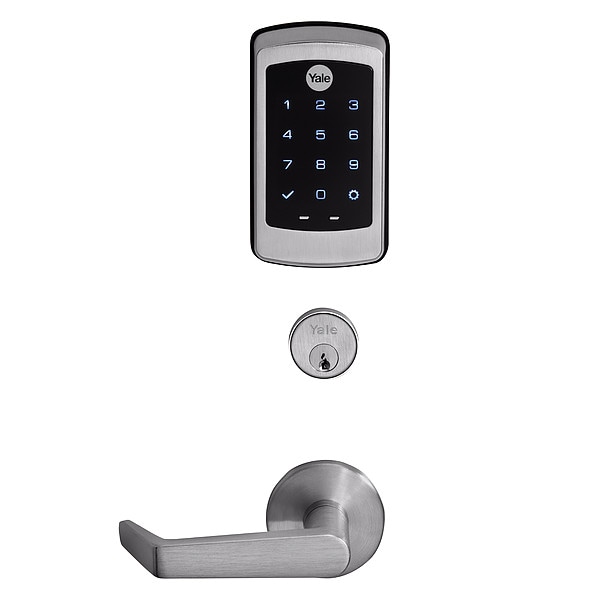

Yale Nextouch nexTouch Sectional Mortise Keypad Lock AU-NTM628-NR x RH x 626 - main

nexTouch Sectional Mortise Keypad Lock

  • Mfr # AU-NTM628-NR x RH x 626

  • Zoro # G210934925

product price:  $907.99
/ea
Free Shipping & Returns

Key Features

Access Method
Keypad
Product Type
Keypad Lock
Bolt Throw
3/4 in
ADA Compliant
Yes
Standards
ANSI/BHMA A156.13 Grade 1, cUL Listed, UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AU-NTM628-NR x RH x 626
Zoro #
G210934925
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Width
5 3/4 in
Overall Depth
2 1/4 in
Door Thickness - Maximum
3 1/4 in
Strike Base Width
2 9/16 in
Strike Base Height
3/8 in
Door Thickness - Minimum
1 3/4 in

Details

Item
Electronic Keyless Lock
Access Method
Keypad
Product Type
Keypad Lock
Bolt Throw
3/4 in
ADA Compliant
Yes
Standards
ANSI/BHMA A156.13 Grade 1, cUL Listed, UL Listed
Power Source
(4) AA Batteries
Fire Rating
3 hr
Voltage
9V DC
Location Type
Commercial
Backset
2 3/4 in
Strike Type
Mortise
Cylinder Core Type
Small Format Interchangeable Core Cylinder
Temperature - Minimum
-40 Degrees F
Locking/Unlocking Access - Inside
Not Lockable
ANSI/BHMA Finish
Satin Chromium-Plated
ANSI Grade
1
Hand Orientation
Right-Handed
Compatible Series
1000
Lockset Type
Mechanical
Locking/Unlocking Access - Outside
Keyway
Includes Core
Core Not Included
Lockset Handle Type
Lever
Temperature - Maximum
140 Degrees F
Lockset Material
Cast

Description

Electronic Keyless Lock, Access Method Keypad, Power Source (4) AA Batteries, Fire Rating 3 hr, ADA Compliant Yes, Standards ANSI/BHMA A156.13 Grade 1, cUL Listed, UL Listed, Location Type Commercial
