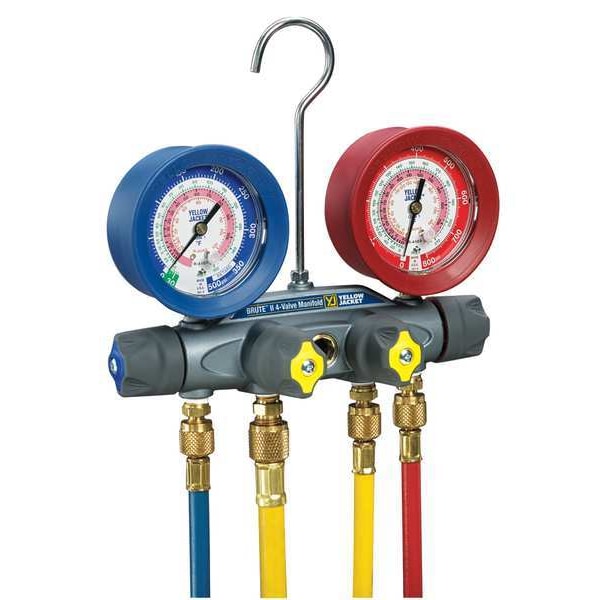

Yellow Jacket Mechanical Manifold Gauge Set, 4-Valve 46013 - main

Mechanical Manifold Gauge Set, 4-Valve

  • Mfr # 46013

  • Zoro # G5365141

product price: $472.75
/ea
Free Shipping & Returns

Key Features

Number of Valves
4
Refrigerant Compatibility
R-22, R-404A, R-410A
Number of Hoses
4
Vacuum Port Size
3/8 in
Standards
UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
46013
Zoro #
G5365141
UPC #
686800460130
Country of Origin
United States

Dimensions

Vacuum Port Size
3/8 in
Hose Length
5 ft
Overall Width
5 1/2 in
Vacuum Port Connection Size
3/8 in
Gauge Diameter
3 1/8 in
Overall Depth
12 1/2 in
Manifold Port Connection Size
3/8 in
Overall Height
11 3/4 in

Details

Item
Manifold Gauge
Number of Valves
4
Refrigerant Compatibility
R-22, R-404A, R-410A
Number of Hoses
4
Standards
UL Listed
Gauges High Side Red
0 to 800 psig
Gauge Accuracy
+/-1.00%
Features
1% Accuracy Gauges
Gauges Low Side Blue
30 in Hg to 350 psi
Material
Forged Aluminum Alloy
Product Type
Manifold Gauge Set
Type
Air Conditioning and Stationary Refrigeration
For Use With
R-22, R-404A, R-410A Refrigerants
Manifold Port Connection Gender
Male
High Side Display Pressure - Maximum
800 psi
Display Illumination
Non-Illuminated
Vacuum Port Connection Type
SAE
Adjustment Method
Lever
Adjustment Material
Plastic
Accuracy
+/- 1%
Pressure Units Measured
psi
Valve Bore
3/8 in
Includes Vacuum Port
Vacuum Port Included
Manifold Port Connection Thread Direction
Right-Hand
For Refrigerant Type
R-22, R-404A, R-410A
Pressure Resolution
5 psi
Vacuum Port Connection Gender
Male
Includes Sightglass
Sightglass Included
Low Side Display Pressure - Minimum
30 in Hg
Series
BRUTE II
Warranty
1 yr
Gauge Fill
Dry
High Side Display Pressure - Minimum
0 psi
Gauge Type
High Side/Low Side
Temperature Units Measured
Degrees F
Calibration Certificate Type
Not Certified
Hose Color
Blue, Red, Yellow
Temperature Resolution
1 Degrees F
Vacuum Port Connection Thread Direction
Right-Hand
Manifold Port Connection Type
SAE
Body Material
Aluminum
Hose Connection Thread Direction
Right-Hand
A2L Compatibility
Not A2L Compatible
Display Type
Analog
Low Side Display Pressure - Maximum
350 psi
Includes Gauge Boots
Boots Included

Description

Manifold Gauge, Number of Valves 4, R-22, R-404A, R-410A, Number of Hoses 4, 5 ft, 0 to 800 psig, 30 in Hg to 350 psi, +/-1.00 Percent, 3/8 in, Forged Aluminum Alloy, 1 Percent Accuracy Gauges, UL Listed, Includes Not Applicable
