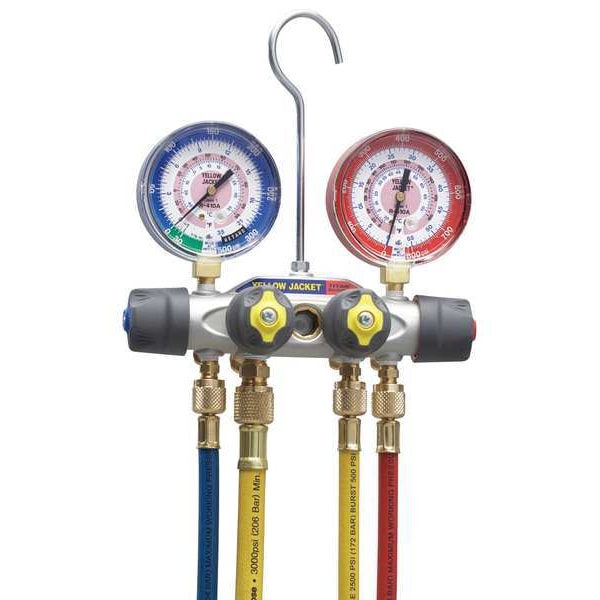

Yellow Jacket Mechanical Manifold Gauge Set, 4-Valve 49987 - main

Mechanical Manifold Gauge Set, 4-Valve

  • Mfr # 49987

  • Zoro # G5365157

product price: $296.99
/ea
Free Shipping & Returns

Key Features

Number of Valves
4
Refrigerant Compatibility
R-134A, R-22, R-404A
Number of Hoses
4
Vacuum Port Size
3/8 in
Gauge Accuracy
+/-1.00%
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
49987
Zoro #
G5365157
UPC #
686800499871
Country of Origin
United States

Dimensions

Vacuum Port Size
3/8 in
Hose Length
5 ft
Manifold Port Connection Size
3/8 in
Overall Height
5 1/4 in
Overall Depth
12 5/8 in
Overall Width
11 3/4 in
Vacuum Port Connection Size
3/8 in
Gauge Diameter
3 1/8 in

Details

Item
Manifold Gauge
Number of Valves
4
Refrigerant Compatibility
R-134A, R-22, R-404A
Number of Hoses
4
Gauge Accuracy
+/-1.00%
Standards
UL Listed
Gauges High Side Red
0 to 800 psig
Material
Forged Aluminum Alloy
Features
1% Accuracy Gauges
Gauges Low Side Blue
30 in Hg to 350 psi
Product Type
Manifold Gauge Set
Type
Air Conditioning and Stationary Refrigeration
For Use With
R-22, R-134a, R-404A Refrigerants
Temperature Resolution
1 Degrees F
Adjustment Method
Lever
Display Illumination
Non-Illuminated
Adjustment Material
Plastic
Includes Vacuum Port
Vacuum Port Included
Gauge Type
High Side/Low Side
Manifold Port Connection Thread Direction
Right-Hand
Accuracy
+/- 1%
Temperature Units Measured
Degrees F
A2L Compatibility
Not A2L Compatible
For Refrigerant Type
R-134A, R-22, R-404A
Warranty
1 yr
Low Side Display Pressure - Maximum
350 psi
Hose Connection Type
45 Degrees SAE
High Side Display Pressure - Minimum
0 psi
Series
Titan
Manifold Port Connection Type
SAE
Vacuum Port Connection Gender
Male
Gauge Fill
Dry
Low Side Display Pressure - Minimum
30 in Hg
Vacuum Port Connection Thread Direction
Right-Hand
Body Material
Aluminum
Vacuum Port Connection Type
SAE
Display Type
Analog
Pressure Resolution
5 psi
Manifold Port Connection Gender
Male
Calibration Certificate Type
Not Certified
Hose Connection Thread Direction
Right-Hand
Includes Gauge Boots
Boot Not Included
High Side Display Pressure - Maximum
800 psi
Hose Color
Blue, Red, Yellow
Includes Sightglass
Sightglass Included
Pressure Units Measured
psi

Description

Manifold Gauge, Number of Valves 4, R-134A, R-22, R-404A, Number of Hoses 4, 5 ft, 0 to 800 psig, 30 in Hg to 350 psi, +/-1.00 Percent, 3/8 in, Forged Aluminum Alloy, 1 Percent Accuracy Gauges, UL Listed, Includes Not Applicable
